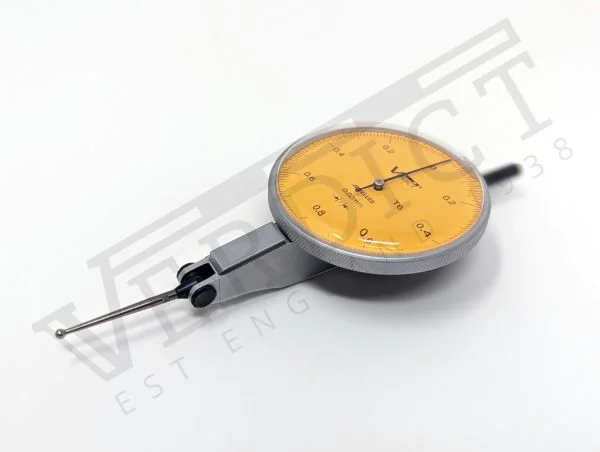

Verdict T6M Dial Test Indicator (T6 Metric), 50mm Dial, Graduation 0.01mm, Range 1.6mm
Code
T6M
Categories: Default Category, Lever Indicators
| Range | 1.6mm |
|---|---|
| Display | Analogue |
| Measuring units | Metric |
| Graduation | 0.01mm |
| Dial Face Diameter | 50mm |
| Circular Scale Dial | 0-0.8-0 |
| Stylus Length | 27.4mm |
| Standard | Manufacturer's |
| Manufacturer | Verdict |
The Verdict T6 combines a large 2"/50 mm dial face with an extended measuring range, ideal for setup and inspection tasks that demand both clear readability and travel beyond the standard 0.030"/0.8 mm.
Every Verdict dial test indicator runs on jewelled bearings with a precision worm-spiral movement and uses Verdict's patented pear-shaped stylus, which keeps the contact point the same distance from the pivot as the stylus is tilted, avoiding cosine error. A switch lever reverses the direction of stylus movement for positive or negative inspection.
Features
- Brand: Verdict
- Part number (MPN): T6M
- Type: Dial test indicator (lever type)
- Model: T6 Metric
- Measurement system: Metric
- Dial diameter: 50 mm
- Graduation: 0.01 mm
- Dial reading: 0-0.8-0
- Measuring range: 1.6 mm
- Stylus length: 27.4 mm
- Bearings: Jewelled
- Mounting: 4 mm / ¼" top spigot, dovetail body; holder side-clamp accepts rods up to 6.5 mm / 0.256"
- Made in: United Kingdom (Verdict Gauge Limited)
