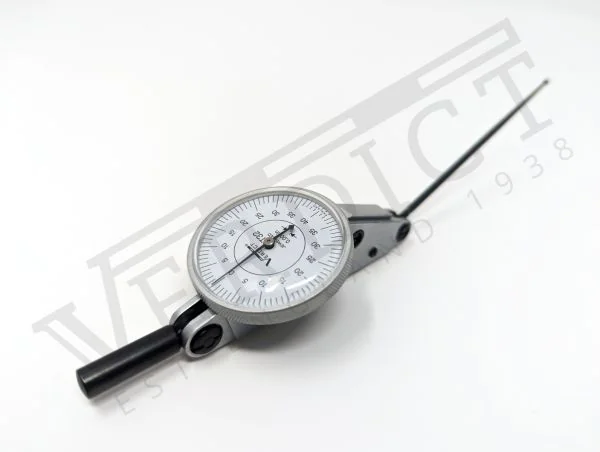

Verdict T32I Dial Test Indicator (T32 Imperial), 1 3/8" Dial, Graduation 0.001", Range 0.082"
Code
T32I
Categories: Default Category, Lever Indicators
| Range | 0.082" |
|---|---|
| Display | Analogue |
| Measuring units | Inch |
| Graduation | 0.001" |
| Dial Face Diameter | 1 3/8in |
| Circular Scale Dial | 0-40-0 |
| Stylus Length | 3.244" |
| Standard | Manufacturer's |
| Manufacturer | Verdict |
The Verdict T32 is the long-range variant of the T-series, with the largest stylus and widest measuring travel in the family, suited for setup work that exceeds standard DTI capacity.
Every Verdict dial test indicator runs on jewelled bearings with a precision worm-spiral movement and uses Verdict's patented pear-shaped stylus, which keeps the contact point the same distance from the pivot as the stylus is tilted, avoiding cosine error. A switch lever reverses the direction of stylus movement for positive or negative inspection.
Features
- Brand: Verdict
- Part number (MPN): T32I
- Type: Dial test indicator (lever type)
- Model: T32 Imperial
- Measurement system: Imperial
- Dial diameter: 1 3/8"
- Graduation: 0.001"
- Dial reading: 0-40-0
- Measuring range: 0.082"
- Stylus length: 3.244"
- Bearings: Jewelled
- Mounting: 4 mm / ¼" top spigot, dovetail body; holder side-clamp accepts rods up to 6.5 mm / 0.256"
- Made in: United Kingdom (Verdict Gauge Limited)
