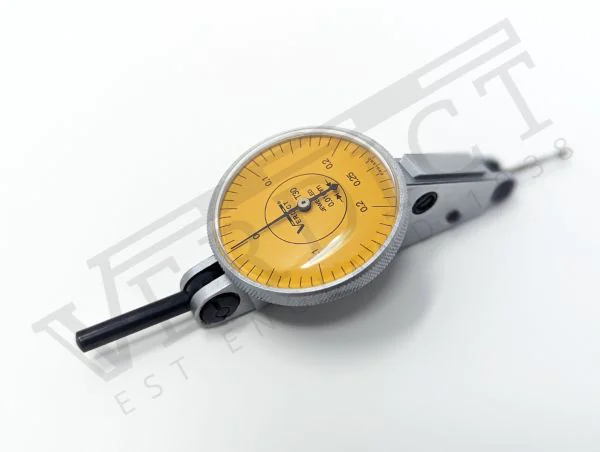

Verdict T30M Dial Test Indicator (T30 Metric), 35mm Dial, Graduation 0.01mm, Range 0.5mm
Code
T30M
Categories: Default Category, Lever Indicators
| Range | 0.5 mm |
|---|---|
| Display | Analogue |
| Measuring units | Metric |
| Graduation | 0.01mm |
| Dial Face Diameter | 35mm |
| Circular Scale Dial | 0-0.25-0 |
| Stylus Length | 20.29mm |
| Standard | Manufacturer's |
| Manufacturer | Verdict |
The Verdict T30 is a 1 3/8"/35 mm dial test indicator with a longer stylus than the standard T-series, providing improved reach into recessed features without sacrificing dial visibility.
Every Verdict dial test indicator runs on jewelled bearings with a precision worm-spiral movement and uses Verdict's patented pear-shaped stylus, which keeps the contact point the same distance from the pivot as the stylus is tilted, avoiding cosine error. A switch lever reverses the direction of stylus movement for positive or negative inspection.
Features
- Brand: Verdict
- Part number (MPN): T30M
- Type: Dial test indicator (lever type)
- Model: T30 Metric
- Measurement system: Metric
- Dial diameter: 35 mm
- Graduation: 0.01 mm
- Dial reading: 0-0.25-0
- Measuring range: 0.5 mm
- Stylus length: 20.29 mm
- Bearings: Jewelled
- Mounting: 4 mm / ¼" top spigot, dovetail body; holder side-clamp accepts rods up to 6.5 mm / 0.256"
- Made in: United Kingdom (Verdict Gauge Limited)
