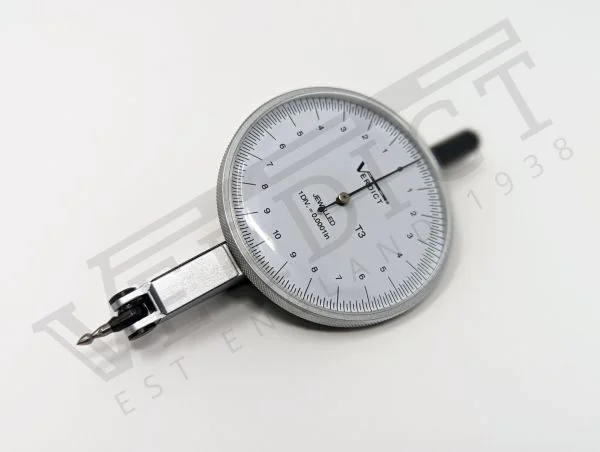

Verdict T3I Dial Test Indicator (T3 Imperial), 2" Dial, Graduation 0.0001", Range 0.020"
Code
T3I
Categories: Default Category, Lever Indicators
| Range | 0.020" |
|---|---|
| Display | Analogue |
| Measuring units | Inch |
| Graduation | 0.0005" |
| Dial Face Diameter | 2in |
| Circular Scale Dial | 0-10-0 |
| Stylus Length | 0.343" |
| Standard | Manufacturer's |
| Manufacturer | Verdict |
The Verdict T3 is a high-resolution dial test indicator built for ultra-precise alignment, surface plate inspection and master-part comparison work where tenths (0.0001") or 5 microns matter.
Every Verdict dial test indicator runs on jewelled bearings with a precision worm-spiral movement and uses Verdict's patented pear-shaped stylus, which keeps the contact point the same distance from the pivot as the stylus is tilted, avoiding cosine error. A switch lever reverses the direction of stylus movement for positive or negative inspection.
Features
- Brand: Verdict
- Part number (MPN): T3I
- Type: Dial test indicator (lever type)
- Model: T3 Imperial
- Measurement system: Imperial
- Dial diameter: 2"
- Graduation: 0.0001"
- Dial reading: 0-10-0
- Measuring range: 0.020"
- Stylus length: 0.343"
- Bearings: Jewelled
- Mounting: 4 mm / ¼" top spigot, dovetail body; holder side-clamp accepts rods up to 6.5 mm / 0.256"
- Made in: United Kingdom (Verdict Gauge Limited)
