| Range | 0.1� |
|---|---|
| Display | Analog |
| Measuring units | Inch |
| Stylus Length | 1.028" |
| Standard | Manufacture's |
| Manufacturer | Verdict |
| Weight | 1.000000 |

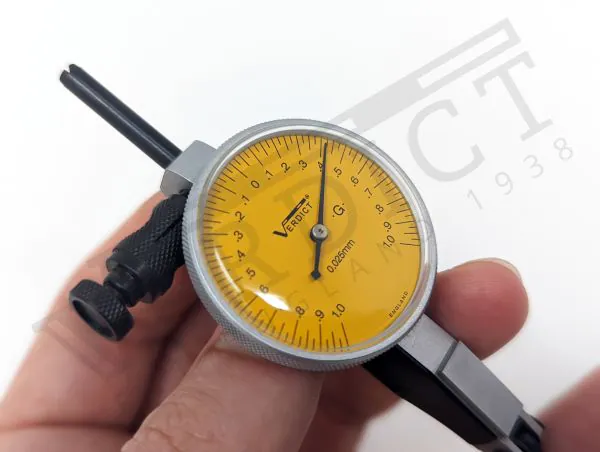

The Verdict G-series is a long-range dial test indicator with extended stylus travel, purpose-built for jobs that exceed the capacity of a standard DTI while retaining the responsiveness of a lever-type movement.
Manufactured by Verdict Gauge Limited — Britain's leading dial test indicator maker, established in Kent in 1938 — the G Imperial (SKU GI) combines a 1 3/8" dial face graduated in 0.001" increments with a 0.1" total measuring range. Designed and made in Britain, every Verdict DTI is built around jewelled bearings, a patented pear-shaped stylus and a precision worm-spiral movement that eliminates cosine error, parallax error and irregular readings.
Key Features
- Dial face: 1 3/8" imperial dial for fast, glare-free reading at the bench or on the machine.
- Graduation: 0.001" per division for confident, repeatable readings.
- Measuring range: 0.1" total travel suited to both fine alignment and broader inspection work.
- Dial reading: 0-50-0 balanced scale for direct plus/minus deviation readout.
- Stylus length: 1.028", with Verdict's patented pear-shaped contact for clean, friction-free engagement.
- Movement: precision worm-spiral mechanism running in jewelled bearings — smooth, shock-resistant and built to last.
- Switch lever: manually reverses the direction of stylus movement to suit either positive or negative feature inspection.
- Mounting: 4 mm / ¼" diameter top spigot, dovetail body, and holder side-clamp accepting rods up to 6.5 mm / 0.256" — compatible with the full range of standard DTI accessories, magnetic bases and indicator arms.
- Origin: designed and manufactured in Britain by Verdict Gauge Limited.
Specifications
| SKU | GI |
|---|---|
| Manufacturer | Verdict Gauge Limited (United Kingdom) |
| Model | G Imperial |
| Measurement system | Imperial |
| Dial diameter | 1 3/8" |
| Graduation | 0.001" |
| Dial face | 0-50-0 |
| Measuring range | 0.1" |
| Stylus length | 1.028" |
| Bearing type | Jewelled |
| Mounting | 4 mm / ¼" top spigot, dovetail body |
Typical Applications
- Aligning vises, fixtures and workpieces on milling machines and machining centres.
- Checking concentricity, runout (TIR) and parallelism on lathes and grinders.
- Surface plate inspection and comparator-style measurement against masters.
- Tramming spindles and indicating bores, slots and machined features.
- In-process quality control and final inspection in toolrooms and calibration laboratories.
Backed by the exclusive Verdict guarantee, the G Imperial is supplied ready for use and is fully compatible with the wider Verdict accessory range as well as third-party dovetail clamps, swivel holders, magnetic bases and height-gauge attachments. Calibration and repair are available through Verdict's UK service centre using only genuine original spares.
