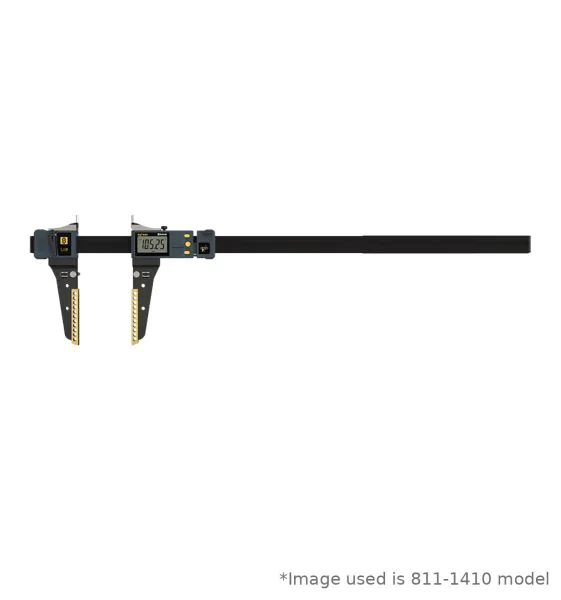

Sylvac 811-1406 UL4 Ultra-Light Digital Caliper, Range 0-600mm, Resolution 0.01mm, IP67, Bluetooth
Code
811-1406
Categories: Default Category, Standard Calipers
| Range | 0-600mm |
|---|---|
| Display | Digital |
| Measuring units | Inch-Metric |
| Resolution | 0.01mm |
| Type | Standard |
| Waterproof | IP67 |
| Manufacturer | Sylvac |
| Accuracy | ±0.04 mm |
| Standard | BS EN ISO 13385:2019 |
| Country of Manufacture | Switzerland |
The Sylvac 811-1406 UL4 is an ultra-light large digital caliper with built-in Bluetooth®. Its frame is a special aluminium profile reinforced with four stainless steel guide rods, it has an XXL display with 20 mm digits and a measuring force control device, and the long 200 mm outer jaws have TiN-coated hardened steel measuring faces. Removable upper studs with Ø5 mm hard metal pins allow internal measurements.
- Measuring range: 0-600 mm
- Resolution: 0.01 mm
- Max. error: 40 µm
- Repeatability: 20 µm
- Outer jaws: 200 mm long, hardened steel measuring part 124 x 8 mm, TiN coated
- Measuring force: 7.5-11.5 N
- Data output: Bluetooth® / USB / RS232 (Proximity)
- Protection rating: IP67
- Functions: 2 references, preset, min/max, tolerance indicators, setting by PC
- Weight: 1.6 kg
- Supplied with: calibration certificate
Made in Switzerland by Sylvac, with a 3-year Sylvac guarantee.
