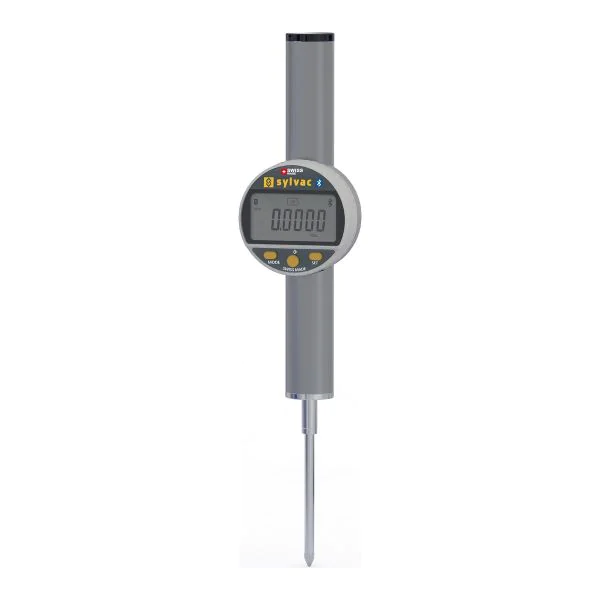

Sylvac 805-8601 S_Dial PRO Smart Digital Indicator, Range 50mm, Resolution 0.0001mm, Bluetooth, Ø8mm Stem
Code
805-8601
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 50mm |
| Measuring units | Inch-Metric |
| Accuracy | 1.2 µm |
| Display | Digital |
| Resolution | 0.0001 mm |
| Stem Diameter | 8mm |
| Measuring Force | 0.85-1.2 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-8601 S_Dial PRO Smart is Sylvac's high-accuracy long-stroke digital indicator, with 0.0001 mm (0.1 µm) resolution and an electronically corrected scale with reference marks for accuracy across the full range. It has built-in Bluetooth®, a rotating Ø59.5 mm aluminium case, a large display with coloured LED tolerance indication, and Proximity and Power outputs.
- Measuring range: 50 mm
- Resolution: 0.0001 mm
- Maximum error (MPE): 1.2 µm
- Repeatability: 0.2 µm
- Return spring: yes
- Measuring force: 0.85-1.2 N
- Protection rating: IP51
- Data output: Bluetooth® / USB / RS232
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: mm/inch, ref I/II, preset, min/max/delta, tolerances, resolution, measuring direction, multiplier, auto/manual switch-off, key lock
- Supplied with: Lithium battery CR2032, lifter, instruction manual, calibration certificate
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
