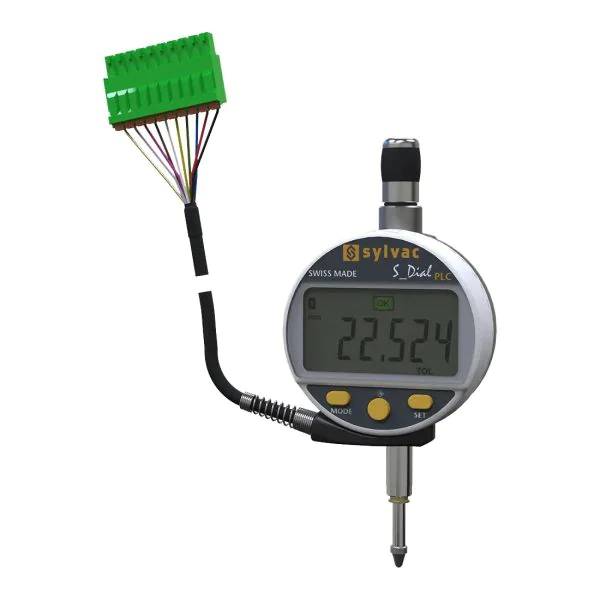

Sylvac 805-7201 S_Dial WORK PLC Digital Indicator, Range 12.5mm, Resolution 0.01mm, IP54, PLC/RS485
Code
805-7201
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 12.5mm |
| Measuring units | Inch-Metric |
| Accuracy | 10 µm |
| Display | Digital |
| Resolution | 0.01mm |
| Stem Diameter | 8mm |
| Measuring Force | 0.65-0.90 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-7201 S_Dial WORK PLC is a digital indicator designed for automation and robotics. It is powered by the controller (no battery needed) and connects to a PLC by RS485, with a choice of ASCII, MODBUS or ORBIT protocol. The aluminium Ø59.5 mm case rotates through 270° and the large display has coloured LED tolerance indication.
- Measuring range: 12.5 mm
- Resolution: 0.01 mm
- Maximum error (MPE): 10 µm
- Repeatability: 2 µm
- Measuring force: 0.65-0.90 N
- Protection rating: IP54
- Data output: RS485 (PLC: ASCII, MODBUS or ORBIT) / RS232 (Proximity)
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: mm/inch, ref I/II, preset, min/max/delta, tolerances, resolution, measuring direction, multiplier, key lock
- Supplied with: PLC cable (5 m) and binder, instruction manual, calibration certificate
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
