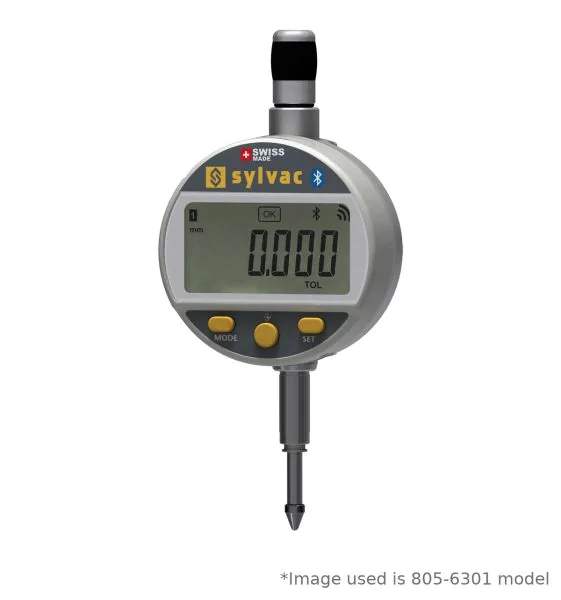

Sylvac 805-6621 S_Dial WORK Smart Digital Indicator, Range 50mm, Resolution 0.001mm, Bluetooth, IP54
Code
805-6621
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 50mm |
| Measuring units | Inch-Metric |
| Accuracy | 5 µm |
| Display | Digital |
| Resolution | 0.001mm |
| Stem Diameter | 8mm |
| Measuring Force | 1.1-2.6 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-6621 S_Dial WORK Smart is a robust digital indicator with built-in Bluetooth®, an aluminium Ø59.5 mm case that rotates through 270° and a large display with coloured LED tolerance indication. Three buttons give access to a wide range of functions including MIN/MAX/DELTA, and the Proximity and Power outputs let it be used without a battery when connected by cable.
- Measuring range: 50 mm
- Resolution: 0.001 mm
- Maximum error (MPE): 5 µm
- Repeatability: 2 µm
- Measuring force: 1.1-2.6 N
- Protection rating: IP54
- Data output: Bluetooth® / USB / RS232
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: mm/inch, ref I/II, preset, min/max/delta, tolerances, resolution, measuring direction, multiplication factor, auto/manual switch-off, key lock
- Supplied with: Lithium battery CR2032, instruction manual, calibration certificate
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
