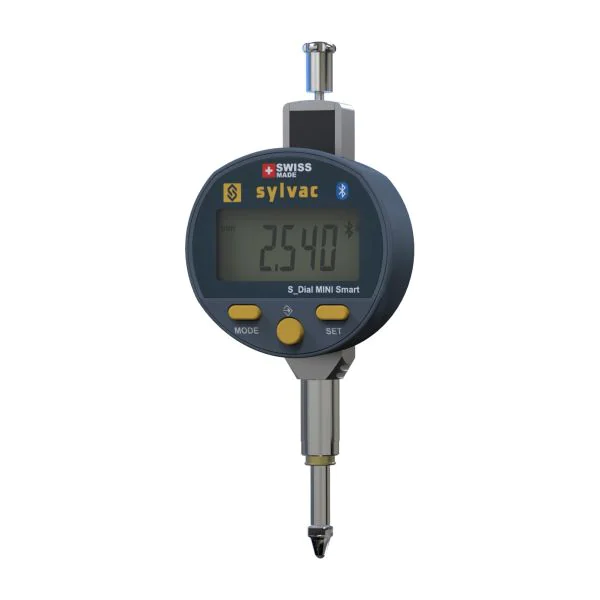

Sylvac 805-6521 S_Dial MINI Smart Digital Indicator, Range 12.5mm, Resolution 0.001mm, Bluetooth, IP67
Code
805-6521
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 12.5mm |
| Measuring units | Inch-Metric |
| Accuracy | 4 µm |
| Display | Digital |
| Resolution | 0.001mm |
| Stem Diameter | 8mm |
| Measuring Force | 0.5-0.90 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-6521 S_Dial MINI Smart is the smallest digital indicator on the market, now with built-in Bluetooth®. The compact Ø45 mm non-rotating case is ideal for building into machines and fixtures, three buttons give access to a wide range of functions including MIN/MAX/DELTA, and the Power output lets it run without a battery when connected by cable.
- Measuring range: 12.5 mm
- Resolution: 0.001 mm
- Maximum error (MPE): 4 µm
- Repeatability: 2 µm
- Version: Standard, with lifting cap
- Measuring force: 0.5-0.90 N
- Protection rating: IP67
- Data output: Bluetooth® / USB / RS232
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: zero setting, resolution selection, preset, min/max/delta, measuring direction, multiplication factor, analogue scale
- Supplied with: Lithium battery CR2032, instruction manual, calibration certificate (0.001 mm models)
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
