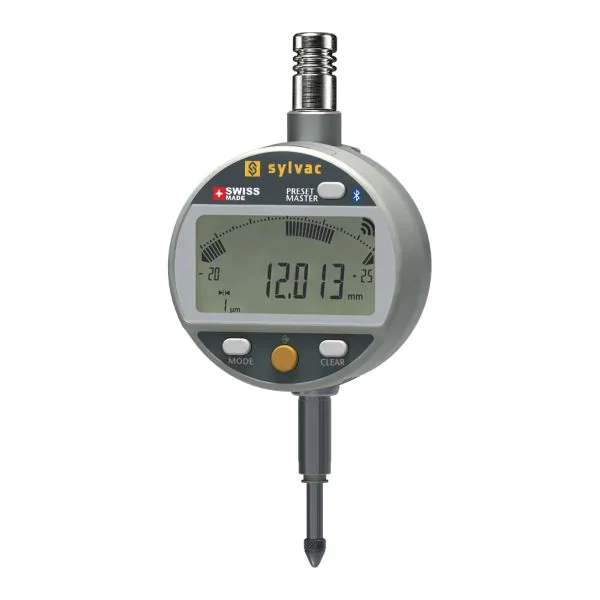

Sylvac 805-6317 S_Dial WORK CBG Digital Indicator for Bore Gauges, Range 12.5mm, Resolution 0.001mm, Bluetooth, IP54
Code
805-6317
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 12.5mm |
| Measuring units | Inch-Metric |
| Accuracy | 3 µm |
| Display | Digital |
| Resolution | 0.001mm |
| Stem Diameter | 8mm |
| Measuring Force | 0.65-0.90 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-6317 S_Dial WORK CBG is a special version for cylindrical bore gauges. It enters the preset value on the saved minimum, so the reversal point is found quickly, and it has a large display with analogue scale and coloured LED tolerances. Robust, water- and coolant-resistant, with Bluetooth®, Proximity and Power outputs.
- Measuring range: 12.5 mm
- Resolution: 0.001 mm
- Maximum error (MPE): 3 µm
- Repeatability: 2 µm
- Measuring force: 0.65-0.90 N
- Protection rating: IP54
- Data output: Bluetooth® / USB / RS232
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: mm/inch, preset, min/max/delta, tolerances, resolution, multiplication factor, auto/manual switch-off
- Supplied with: Lithium battery CR2032, instruction manual, calibration certificate (Preset Master not included)
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
