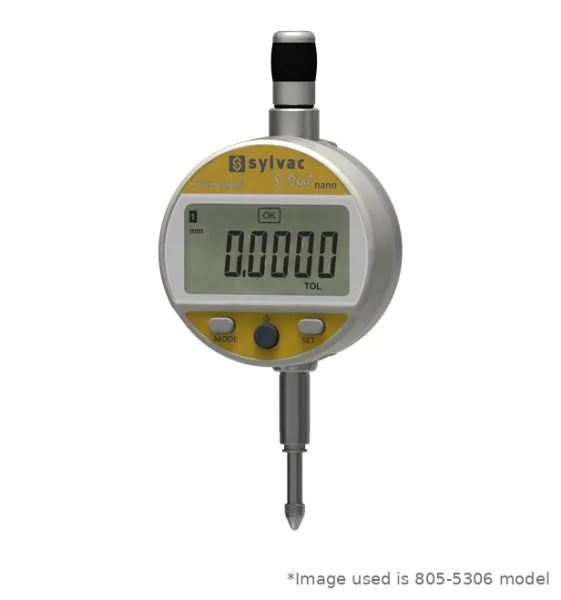

Sylvac 805-6307 S_Dial WORK Analog Nano Smart Digital Indicator, Range 12.5mm, Resolution 0.0001mm, Bluetooth, IP54
Code
805-6307
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 12.5mm |
| Measuring units | Inch-Metric |
| Accuracy | 1.2 µm |
| Display | Digital |
| Resolution | 0.0001 mm |
| Stem Diameter | 8mm |
| Measuring Force | 0.65-0.90 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-6307 S_Dial WORK Analog Nano Smart is a high-accuracy digital indicator with built-in Bluetooth®, 0.0001 mm (0.1 µm) resolution and an analogue scale, with a maximum error of 1.2 µm and 0.3 µm repeatability. Five buttons give quick access to tolerance limits and analogue resolution, and the Proximity and Power outputs let it be used without a battery when connected by cable.
- Measuring range: 12.5 mm
- Resolution: 0.0001 mm
- Maximum error (MPE): 1.2 µm
- Repeatability: 0.3 µm
- Measuring force: 0.65-0.90 N
- Protection rating: IP54
- Data output: Bluetooth® / USB / RS232
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: mm/inch, preset, min/max/delta, tolerances, resolution, measuring direction, multiplication factor, auto/manual switch-off, key lock
- Supplied with: Lithium battery CR2032, instruction manual, calibration certificate
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
