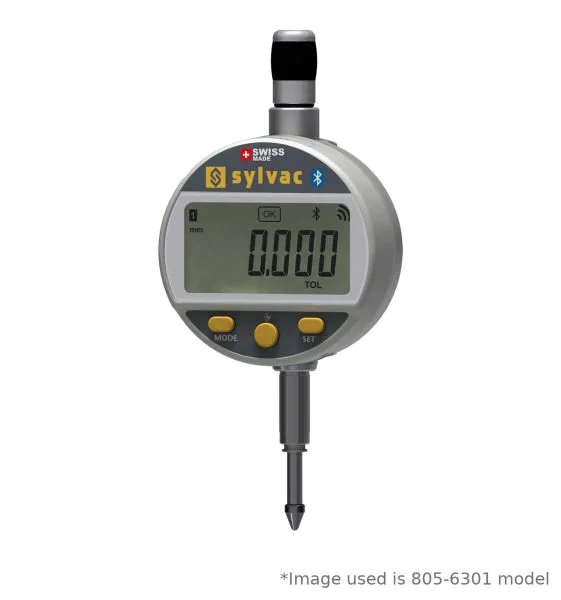

Sylvac 805-5641 S_Dial WORK Advanced Digital Indicator, Range 100mm, Resolution 0.01mm, IP54
Code
805-5641
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 100mm |
| Measuring units | Inch-Metric |
| Accuracy | 20 µm |
| Display | Digital |
| Resolution | 0.01mm |
| Stem Diameter | 8mm |
| Measuring Force | 1.8-3.8 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-5641 S_Dial WORK Advanced is a robust digital indicator with an aluminium Ø59.5 mm case that rotates through 270°, a large display with coloured LED tolerance indication and three buttons giving access to a wide range of functions including MIN/MAX/DELTA. The Proximity and Power outputs let it be used without a battery when connected by cable.
- Measuring range: 100 mm
- Resolution: 0.01 mm
- Maximum error (MPE): 20 µm
- Repeatability: 2 µm
- Measuring force: 1.8-3.8 N
- Protection rating: IP54
- Data output: USB / RS232
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: mm/inch, ref I/II, preset, min/max/delta, tolerances, resolution, measuring direction, multiplication factor, auto/manual switch-off, key lock
- Supplied with: Lithium battery CR2032, instruction manual, calibration certificate (0.001 mm models)
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
