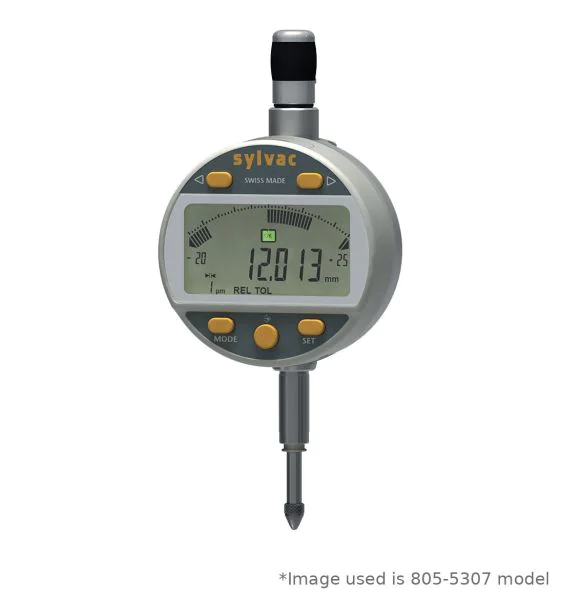

Sylvac 805-5507 S_Dial WORK Analog Digital Indicator, Range 25mm, Resolution 0.001mm, IP54
Code
805-5507
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 25mm |
| Measuring units | Inch-Metric |
| Accuracy | 4 µm |
| Display | Digital |
| Resolution | 0.001mm |
| Stem Diameter | 8mm |
| Measuring Force | 0.65-1.15 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-5507 S_Dial WORK Analog is a robust digital indicator that combines a large digital display with an analogue scale (selectable from 0.2 µm per division) and coloured LED tolerance indication, ideal for comparative measurement and bore gauges. The aluminium Ø59.5 mm case rotates through 270°, and the Proximity and Power outputs let it be used without a battery when connected by cable.
- Measuring range: 25 mm
- Resolution: 0.001 mm
- Maximum error (MPE): 4 µm
- Repeatability: 2 µm
- Measuring force: 0.65-1.15 N
- Protection rating: IP54
- Data output: USB / RS232
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: mm/inch, preset, min/max/delta, tolerances, resolution, measuring direction, multiplication factor, auto/manual switch-off, key lock
- Supplied with: Lithium battery CR2032, instruction manual, calibration certificate
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
