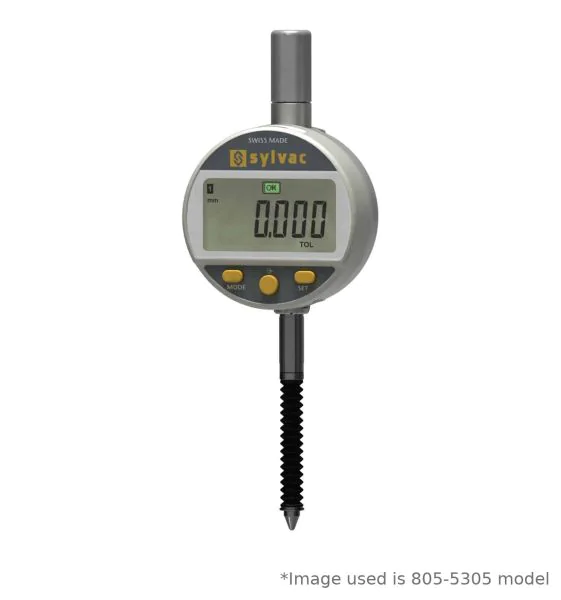

Sylvac 805-5505 S_Dial WORK Advanced IP67 Digital Indicator, Range 25mm, Resolution 0.001mm, IP67
Code
805-5505
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 25mm |
| Measuring units | Inch-Metric |
| Accuracy | 4 µm |
| Display | Digital |
| Resolution | 0.001mm |
| Stem Diameter | 8mm |
| Measuring Force | 0.65-1.8 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-5505 S_Dial WORK Advanced IP67 is a robust, fully sealed IP67 digital indicator with a bellows-protected spindle and dust cap, for use with coolant and in dirty workshop conditions. The aluminium Ø59.5 mm case rotates through 270°, the large display has coloured LED tolerance indication, and the Proximity and Power outputs let it be used without a battery when connected by cable.
- Measuring range: 25 mm
- Resolution: 0.001 mm
- Maximum error (MPE): 4 µm
- Repeatability: 2 µm
- Measuring force: 0.65-1.8 N
- Protection rating: IP67
- Data output: USB / RS232
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: mm/inch, ref I/II, preset, min/max/delta, tolerances, resolution, measuring direction, multiplication factor, auto/manual switch-off, key lock
- Supplied with: Lithium battery CR2032, instruction manual, calibration certificate
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
