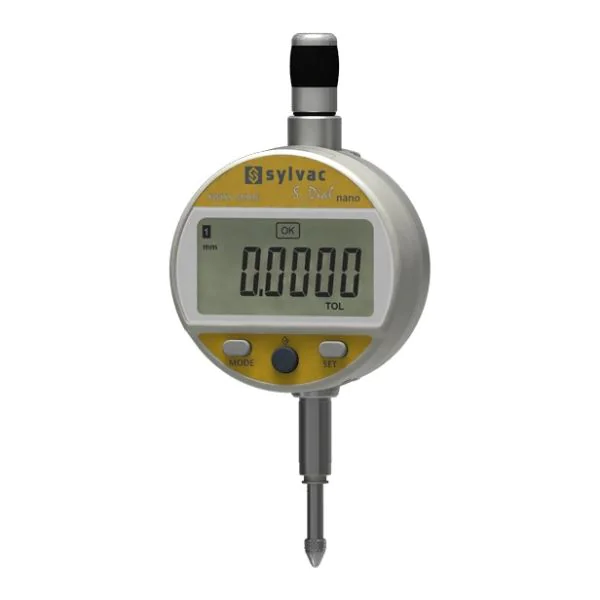

Sylvac 805-5306 S_Dial WORK Nano Digital Indicator, Range 12.5mm, Resolution 0.0001mm, IP54
Code
805-5306
Categories: Default Category, Digital Indicators
| Manufacturer | Sylvac |
|---|---|
| Range | 12.5mm |
| Measuring units | Inch-Metric |
| Accuracy | 1.2 µm |
| Display | Digital |
| Resolution | 0.0001 mm |
| Stem Diameter | 8mm |
| Measuring Force | 0.65-0.90 N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Switzerland |
The Sylvac 805-5306 S_Dial WORK Nano is a high-accuracy digital indicator with 0.0001 mm (0.1 µm) resolution, a maximum error of 1.2 µm and 0.3 µm repeatability. The aluminium Ø59.5 mm case rotates through 270°, the large display has coloured LED tolerance indication, and the Proximity and Power outputs let it be used without a battery when connected by cable.
- Measuring range: 12.5 mm
- Resolution: 0.0001 mm
- Maximum error (MPE): 1.2 µm
- Repeatability: 0.3 µm
- Measuring force: 0.65-0.90 N
- Protection rating: IP54
- Data output: USB / RS232
- Clamping: Ø8 mm h6
- Contact point: interchangeable M2.5, stainless steel with tungsten carbide ball
- Functions: mm/inch, ref I/II, preset, min/max/delta, tolerances, resolution, measuring direction, multiplication factor, auto/manual switch-off, key lock
- Supplied with: Lithium battery CR2032, instruction manual, calibration certificate
Made in Switzerland by Sylvac. Absolute S.I.S measuring system with automatic sleep and wake-up, mm/inch conversion and a 3-year Sylvac guarantee.
