Moore & Wright MWT-1200 High Precision Surface Roughness Tester, Ra 0.005-32µm, IP67
Code
MWT-1200
Categories: Default Category, Surface Finish
| Manufacturer | Moore & Wright |
|---|---|
| Measuring units | Inch-Metric |
| Range | Ra 0.005-32µm |
| Stylus Type | Inductive |
| Accuracy | ±10% |
| Power Supply | Rechargeable Battery |
| Country of Manufacture | China |

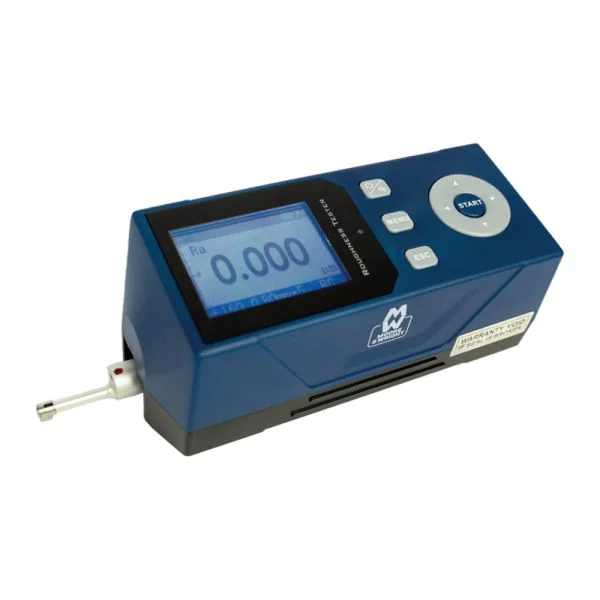

The Moore & Wright MWT-1200 is an advanced hand-held, portable roughness tester with an external probe to reach tricky internal features. It has a high-precision inductive sensor, a wide range of roughness parameters and on-screen waveforms for analysis directly on the device, and the dedicated software can drive the tester, display waveforms, print reports and export readings to Excel.
- Measuring range: Ra, Rq 0.005-32 µm; Rz, Ry, Rt, Rp, Rm 0.02-320 µm; Rs, RSm 1 mm
- Resolution: 0.001 µm
- Accuracy: < ±10%
- Parameters: Ra, Rq, Rz, Rt, Rp, Rv, RS, RSm, Rsk, Rku, Rpc, Ry, Rmax, R3z
- Protection rating: IP67
- Power: internal 1000 mAh lithium-ion rechargeable battery with external power adapter
- Extended probe to access internal bores and surfaces
- Text and waveforms on a bright 2" LCD
- Compatible with ISO, DIN, ANSI and JIS standards
- Waveform and Abbott curve display
- Stores 500 sets of raw data and waveforms
- Wired data transfer to the dedicated software (free download)
- Includes a precision reference standard
- Supplied in a tough protective carry case
Moore & Wright: over 100 years of designing and making precision measuring equipment.
