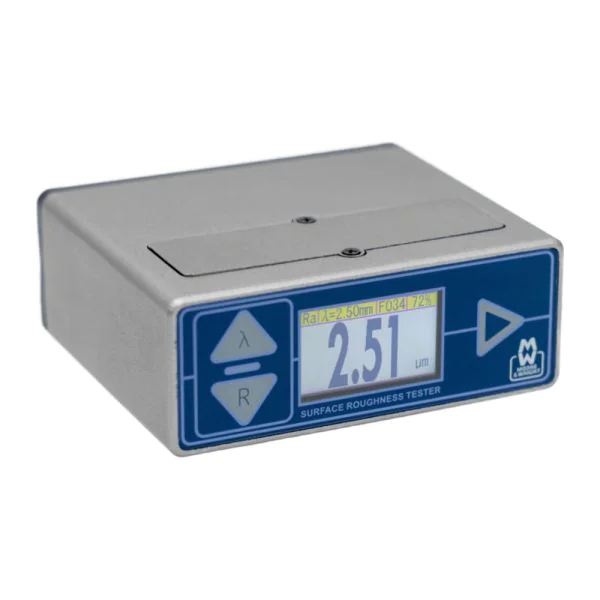

Moore & Wright MWT-1100 Portable Surface Roughness Tester, Ra 0.05-10µm, Wireless
Code
MWT-1100
Categories: Default Category, Surface Finish
| Manufacturer | Moore & Wright |
|---|---|
| Measuring units | Inch-Metric |
| Range | Ra 0.05-10µm |
| Stylus Type | 10µm/90° |
| Cut-off Length | 0.25/0.8/2.5mm |
| Accuracy | ±10% |
| Power Supply | Battery |
| Country of Manufacture | China |
The Moore & Wright MWT-1100 is the most compact model in the latest generation of Moore & Wright roughness testers: highly accurate, with a wide measuring range and simple operation, small, hand-held and portable. It interfaces with a PC for data analysis and reports.
- Measuring range: Ra, Rq 0.05-10.0 µm; Rz, Rt 0.1-50 µm
- Parameters: Ra, Rz, Rq, Rt
- Stroke length: 5.6 mm
- Sampling length: 0.25, 0.80, 2.50 mm
- Evaluation length: 1.25, 4.0, 5.6 mm
- Indication error: ±10%
- Indication variability: <6%
- Stylus: tip radius 10 µm ±1 µm, tip angle 90°, static force ≤0.016 N
- Power: single 1.5 V AA battery
- Weight: 165 g
- Digital signal processing for high-accuracy measurement
- Bright LCD for wide-angle viewing
- Selectable parameters, sample distance and units
- Internal storage of 500 data points
- Wireless data transfer and device control with the supplied dongle and Dataview software
- Excel reports with analysis
- Aluminium housing for durability and protection from electromagnetic interference
- Supplied with a reference standard block
Moore & Wright: over 100 years of designing and making precision measuring equipment.
