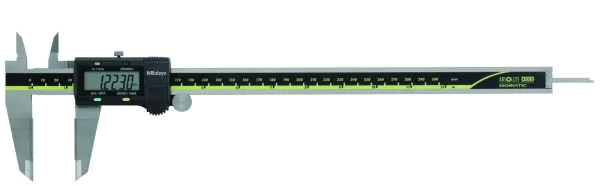

Mitutoyo 500-168-30 Digital ABS AOS Caliper, ID/OD Carb. Ja., Range 0-12" / 0-300 mm, Data Output
Code
500-168-30
Categories: Default Category, Calipers Standard
| Range | 0-12" / 0-300 mm |
|---|---|
| Display | Digital |
| Measuring units | Inch-Metric |
| Resolution | 0.0005"/0.01mm |
| Type | Standard |
| Manufacturer | Mitutoyo |
| Depth Rod | Square |
| Accuracy | ±0.0015" / ±0.03 mm |
| Material | Tungsten Carbide |
| Standard | BS EN ISO 13385:2019 |
| Weight | 0.350000 |
| Country of Manufacture | Japan |
Mitutoyo Digital ABS AOS Caliper, ID/OD Carb. Ja. (500-168-30) is a high-accuracy digital ABSOLUTE AOS caliper designed for fast, contamination-resistant dimensional measurement on the shop floor. The slider provides smooth, stable and comfortable operation.
- Measuring range: 0-12" / 0-300 mm
- Accuracy (MPE-E): ±0.0015" / ±0.03 mm
Features include ABSOLUTE (ABS) linear encoder retains zero after power-off, AOS (Advanced Onsite Sensor) induction-type encoder for contamination resistance, carbide-tipped measuring jaws for long service life, Digimatic data output for SPC connectivity, supplied with battery for immediate use, and factory certificate of inspection included.
Suitable for production measurement, machine-shop inspection and quality control.
