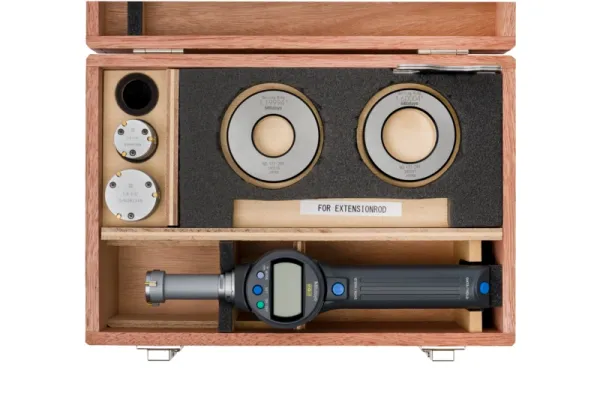

Mitutoyo 568-930-10 Borematic ABSOLUTE Digimatic Snap-Open Internal Micrometer / Bore Gauge Set, 1-2 in / 25.4-50.8mm - Interchangeable Head Set
Code
568-930-10
Categories: Default Category, Bore Micrometer Sets
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Measuring units | Inch-Metric |
| Type | 3-point |
| Range | 1-2" |
| Resolution | 0.001 mm/0.00005" |
| Measuring Face | Titanium coated hardened steel taper: tungsten carbide |
| Included in Set | Individual ranges: 1-1.2" 1.2-1.6" 1.6-2". Setting rings included: Ø1.2" (177-289) Ø1.6" (177-291) |
Mitutoyo Digital ABS Borematic Internal Bore Gauge Set ( 568-930-10) is a professional three-point digital bore measuring system designed for high-accuracy internal diameter inspection.
- Measuring range: 1–2 in
- Resolution: 0.00005 in / 0.001 mm
- Measuring method: 3-point
Features include ABS absolute zero, GO/±NG judgement, interchangeable heads, a rotatable LCD display, and titanium-coated measuring pins for high durability and repeatability.
Suitable for production measurement, quality control, and calibration laboratory environments.
