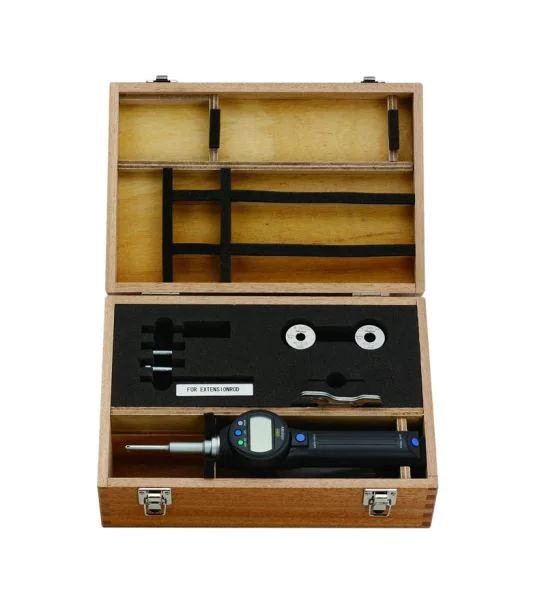

Mitutoyo 568-928-10 Borematic ABSOLUTE Digimatic Snap-Open Internal Micrometer / Bore Gauge Set, 0.275-0.5 in / 6.985-12.7 mm - Interchangeable Head Set
Code
568-928-10
Categories: Default Category, Bore Micrometer Sets
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Measuring units | Inch-Metric |
| Type | 3-point |
| Range | 0.275 - 0.5" |
| Resolution | 0.001 mm/0.00005" |
| Measuring Face | Titanium coated carbide taper: tungsten carbide |
| Included in Set | Individual ranges: 0.275-0.35" 0.35-0.425" 0.425-0.5". Setting rings included: Ø0.35" (177-179) Ø0.425" (177-283) |
Mitutoyo Digital ABS Borematic Internal Bore Gauge Set ( 568-928-10) is a professional three-point digital bore measuring system designed for high-accuracy internal diameter inspection.
- Measuring range: 0.275–0.5 in
- Resolution: 0.00005 in / 0.001 mm
- Measuring method: 3-point
Features include ABS absolute zero, GO/±NG judgement, interchangeable heads, a rotatable LCD display, and titanium-coated measuring pins for high durability and repeatability.
Suitable for production measurement, quality control, and calibration laboratory environments.
