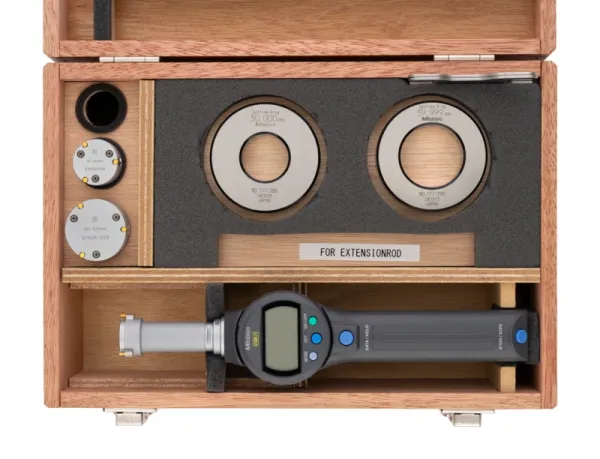

Mitutoyo Digital ABS Borematic Internal Bore Gauge Set – 568-926-10 – 25–50 mm Range, 0.001 mm Resolution
Code
568-926-10
Categories: Default Category, Bore micrometer sets
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Measuring units | Metric |
| Type | 3-point |
| Range | 25 - 50mm |
| Resolution | 0.001mm |
| Measuring Face | Titanium coated hardened steel taper: tungsten carbide |
| Included in Set | Individual ranges: 25-30 mm 30-40 mm 40-50 mm. Setting rings included: Ø30 mm (177-288) Ø40 mm (177-290) |
| Weight | 11.000000 |
Mitutoyo Digital ABS Borematic Internal Bore Gauge Set ( 568-926-10) is a professional three-point digital bore measuring system designed for high-accuracy internal diameter inspection.
- Measuring range: 25–50 mm
- Resolution: 0.001 mm
- Measuring method: 3-point
Features include ABS absolute zero, GO/±NG judgement, interchangeable heads, a rotatable LCD display, and titanium-coated measuring pins for high durability and repeatability.
Suitable for production measurement, quality control, and calibration laboratory environments.
