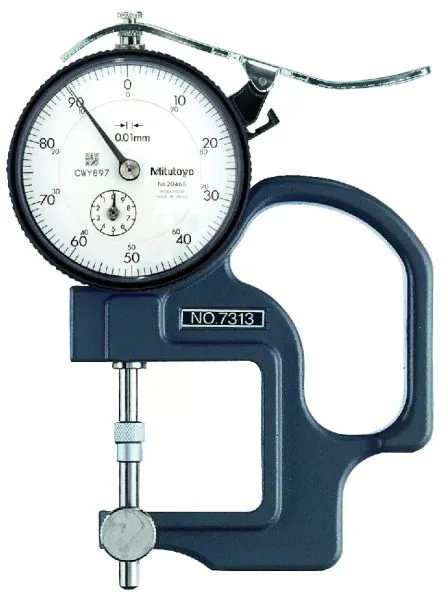

Mitutoyo 7313A Dial Lens Thickness Gauge, Range 0-10mm, Graduation 0.01mm
Code
7313A
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Analogue |
| Depth of Jaw | 30.3 mm |
| Range | 0-10mm |
| Resolution | 0.01mm |
| Measuring Force | 1.4N |
| Measuring units | Metric |
| Accuracy | 0.015 mm |
| Country of Manufacture | Japan |
The Mitutoyo 7313A is a dial thickness gauge for measuring the thickness of concave and convex lenses and surfaces, with interchangeable anvils and contact points.
- Measuring range: 0-10 mm
- Graduation: 0.01 mm
- Accuracy: ±15 µm
- Measuring force: 1.4 N or less
- Type: Lens thickness: interchangeable anvils and contact points for concave and convex surfaces, ø4 mm ball point supplied
- Throat depth: 30.3 mm
Made in Japan by Mitutoyo.
