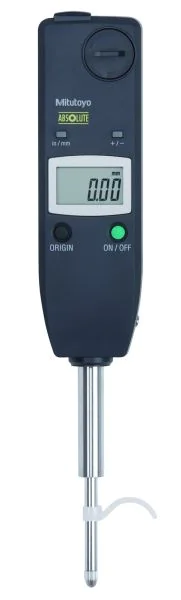

Mitutoyo 575-123 Digital Indicator ID-U, Resolution 0.01mm, Range 25.4mm
Code
575-123
Categories: Default Category, Digital Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 25.4 mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.02 mm |
| Display | Digital |
| Resolution | 0.01 mm/0.0005" |
| Stem Diameter | 3/8" |
| Measuring Force | 1.8N |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Japan |
The Mitutoyo 575-123 is a slim body, economical ABSOLUTE Digimatic indicator with a large 8.5 mm LCD and around 20,000 hours of battery life.
- Measuring range: 1" / 25.4 mm
- Resolution: .0005" / 0.01 mm
- Maximum permissible error: ±.001" / 0.02 mm
- Measuring force: 1.8 N or less
- Stem diameter: 3/8"
- Standard contact point: 21BZB005
Mitutoyo ABSOLUTE technology keeps the origin when the indicator is switched off, so there is no need to re-zero, and removes the risk of overspeed errors. Data output allows connection to SPC and measurement networks, with Mitutoyo data cables, USB input tools and U-WAVE wireless transmitters available separately.
Suitable for precision comparative measurement, inspection fixtures, run-out checks and quality control.
