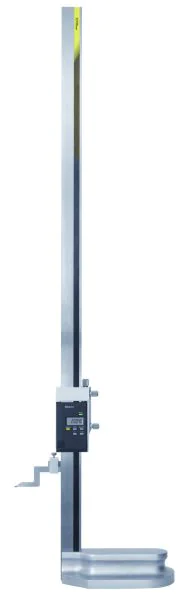

Mitutoyo 570-248 ABSOLUTE Digimatic Height Gauge, Range 0-1000mm, Resolution 0.01mm
Code
570-248
Categories: Default Category, Digital Height Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Range | 0-1000mm |
| Measuring units | Inch-Metric |
| Resolution | 0.01 mm/0.0005" |
| Accuracy | ±0.07 mm |
| Type | Single Column |
| Repeatability | 10 µm |
| Data Output | Yes |
| Air Cushion | No |
| Power Supply | Battery |
| Country of Manufacture | Japan |
The Mitutoyo 570-248 is a rigid ABSOLUTE Digimatic height gauge with ABS and INC modes, +/- direction measurement and data output, suitable for demanding workshop use.
- Measuring range: 0-1000 mm (0-40")
- Resolution: 0.01 mm (.0005")
- Maximum permissible error: ±0.07 mm (±.003")
- Data output: Yes
- Fine feed: 6 mm (.24")
- Overall height: 1260 mm
- Mass: 16.8 kg
Made in Japan by Mitutoyo. Suitable for inspection, layout and quality control on the surface plate.
