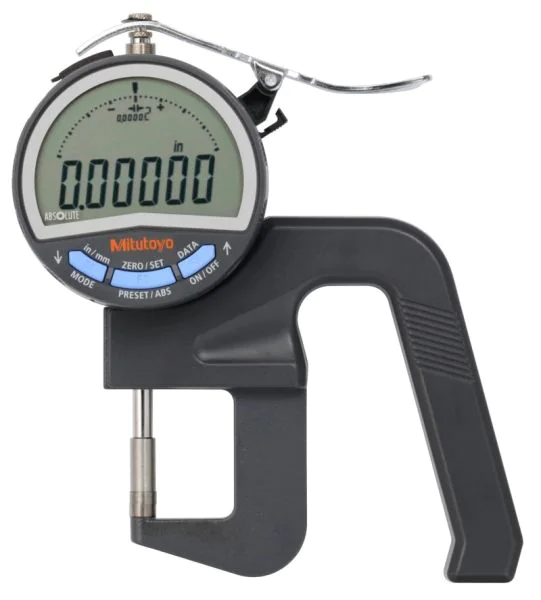

Mitutoyo 547-400A ABSOLUTE Digimatic Thickness Gauge, Range 0-12mm, Resolution 0.001mm, Throat Depth 21mm
Code
547-400A
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Depth of Jaw | 21 mm |
| Range | 0-12mm |
| Resolution | 0.001 mm/0.00005" |
| Measuring Force | 3.5N |
| Measuring units | Inch-Metric |
| Accuracy | 0.003 mm |
| Country of Manufacture | Japan |
The Mitutoyo 547-400A is an ABSOLUTE Digimatic dial-type thickness gauge for fast, accurate thickness measurement of thin products such as paper, film and felt. The bezel and crystal are moulded as one piece to keep out water and oil, and data output connects to SPC and measurement systems.
- Measuring range: 0-12 mm (0-.47")
- Resolution: 0.001 mm (.00005")
- Accuracy: ±3 µm (±.0001")
- Measuring force: 3.5 N or less
- Type: High accuracy, carbide spindle/anvil
- Throat depth: 21 mm
Made in Japan by Mitutoyo.
