Mitutoyo 547-316A ABSOLUTE Digimatic Groove Depth Thickness Gauge, Range 0-10mm, Resolution 0.01mm
Code
547-316A
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Depth of Jaw | 30.3 mm |
| Range | 0-10mm |
| Resolution | 0.01 mm/0.0005" |
| Measuring Force | 1.5N |
| Measuring units | Inch-Metric |
| Accuracy | 0.02 mm |
| Country of Manufacture | Japan |

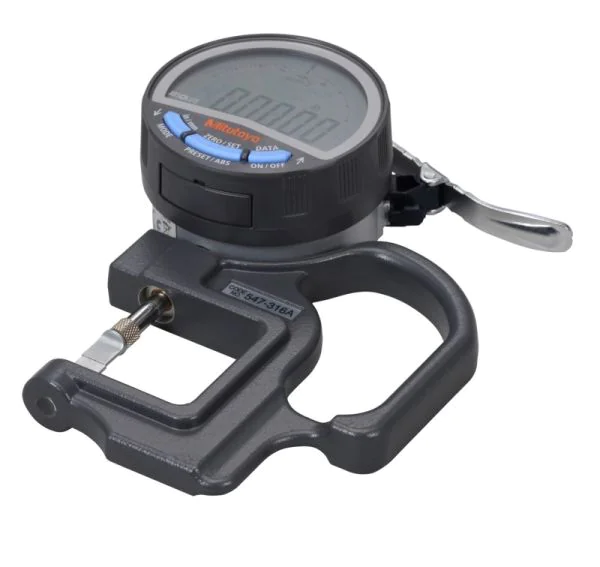

The Mitutoyo 547-316A is an ABSOLUTE Digimatic thickness gauge for measuring narrow grooves, with blade-shaped (1 mm thick) contact point and anvil and data output for SPC.
- Measuring range: 0-10 mm (0-.4")
- Resolution: 0.01 mm (.0005")
- Accuracy: ±20 µm (±.001")
- Measuring force: 1.5 N or less
- Type: Groove depth: blade-shaped contact point and anvil (1 mm thick) for narrow grooves
- Throat depth: 30.3 mm
Made in Japan by Mitutoyo.
