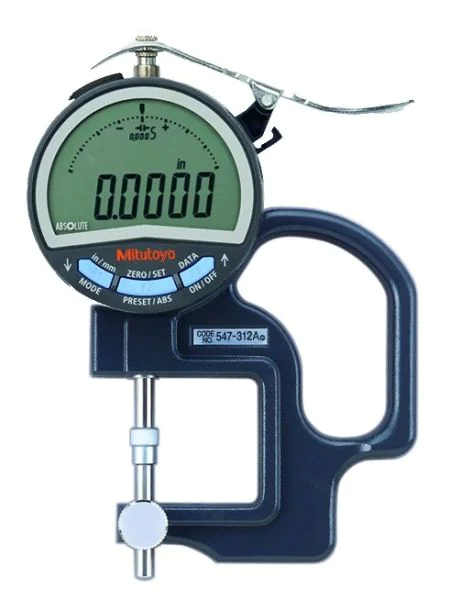

Mitutoyo 547-312A ABSOLUTE Digimatic Lens Thickness Gauge, Range 0-10mm, Resolution 0.01mm
Code
547-312A
Categories: Default Category, Thickness Gauges & Caliper Gauges
| Manufacturer | Mitutoyo |
|---|---|
| Display | Digital |
| Depth of Jaw | 30.3 mm |
| Range | 0-10mm |
| Resolution | 0.01 mm/0.0005" |
| Measuring Force | 1.5N |
| Measuring units | Inch-Metric |
| Accuracy | 0.02 mm |
| Country of Manufacture | Japan |
The Mitutoyo 547-312A is an ABSOLUTE Digimatic thickness gauge for measuring the thickness of concave and convex lenses and surfaces, with interchangeable anvils and contact points and data output for SPC.
- Measuring range: 0-10 mm (0-.4")
- Resolution: 0.01 mm (.0005")
- Accuracy: ±20 µm (±.001")
- Measuring force: 1.5 N or less
- Type: Lens thickness: interchangeable anvils and contact points for concave and convex surfaces, ø4 mm ball point supplied
- Throat depth: 30.3 mm
Made in Japan by Mitutoyo.
