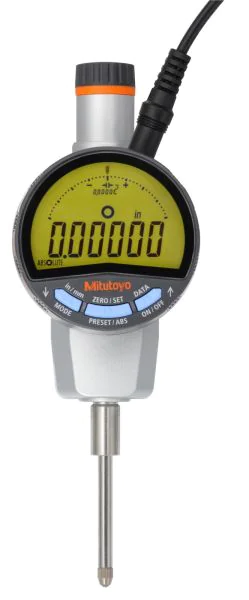

Mitutoyo 543-852E Digital Indicator ID-F NX, Resolution 0.0005mm, Range 25.4mm
Code
543-852E
Categories: Default Category, Digital Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 25.4 mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.0025 mm |
| Display | Digital |
| Resolution | 0.0005 mm/0.00002" |
| Stem Diameter | 3/8" |
| Measuring Force | 1.8N |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Japan |
The Mitutoyo 543-852E is a multi-function ABSOLUTE Digimatic indicator with a large 11 mm backlit LCD and analogue bar, resolution switchable down to 0.5 µm, and a bi-directional data port.
- Measuring range: 1" / 25.4 mm
- Resolution: selectable down to 0.0005 mm
- Maximum permissible error: ±.0001" / 0.0025 mm
- Measuring force: 1.8 N or less
- Stem diameter: 3/8"
- Standard contact point: 21BZB005
Mitutoyo ABSOLUTE technology keeps the origin when the indicator is switched off, so there is no need to re-zero, and removes the risk of overspeed errors. Data output allows connection to SPC and measurement networks, with Mitutoyo data cables, USB input tools and U-WAVE wireless transmitters available separately.
Suitable for precision comparative measurement, inspection fixtures, run-out checks and quality control.
