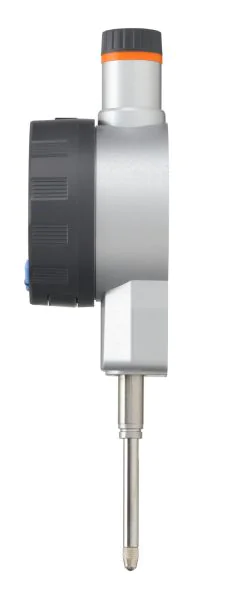

Mitutoyo 543-721B Digital Indicator ID-C NX, Resolution 0.0005mm, Range 25.4mm
Code
543-721B
Categories: Default Category, Digital Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 25.4 mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.003 mm |
| Display | Digital |
| Resolution | 0.0005 mm/0.00002" |
| Stem Diameter | 8mm |
| Measuring Force | 1.8N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Japan |
The Mitutoyo 543-721B is a next-generation ABSOLUTE Digimatic indicator with a large 11 mm backlit LCD, an analogue bar display, an on-screen calibration reminder and a bi-directional data port.
- Measuring range: 1" / 25.4 mm
- Resolution: .00002" - .0005" / 0.0005 - 0.01 mm (selectable)
- Maximum permissible error: ±.00012" / 0.003 mm
- Measuring force: 1.8 N or less
- Stem diameter: 8mm
- Standard contact point: 901312
Mitutoyo ABSOLUTE technology keeps the origin when the indicator is switched off, so there is no need to re-zero, and removes the risk of overspeed errors. Data output allows connection to SPC and measurement networks, with Mitutoyo data cables, USB input tools and U-WAVE wireless transmitters available separately.
Suitable for precision comparative measurement, inspection fixtures, run-out checks and quality control.
