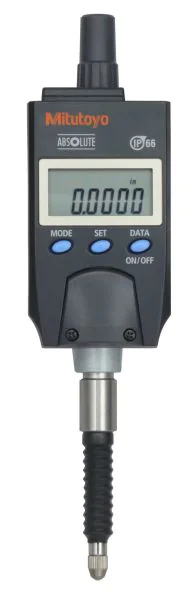

Mitutoyo 543-571 Digital Indicator ID-N, Resolution 0.01mm, Range 12.7mm
Code
543-571
Categories: Default Category, Digital Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 12.7 mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.02 mm |
| Display | Digital |
| Resolution | 0.01 mm/0.0005" |
| Stem Diameter | 3/8" |
| Measuring Force | 2.5N |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Japan |
The Mitutoyo 543-571 is a slim-body ABSOLUTE Digimatic indicator only 35 mm wide, ideal for multi-point gauging where space is tight. It is rated IP66 for use with cutting fluid and coolant, and has built-in tolerance judgement.
- Measuring range: .5" / 12.7 mm
- Resolution: .0005" / 0.01 mm
- Maximum permissible error: ±.001" / 0.02 mm
- Measuring force: 2.5 N or less
- Stem diameter: 3/8"
- Standard contact point: 21BZB005
Mitutoyo ABSOLUTE technology keeps the origin when the indicator is switched off, so there is no need to re-zero, and removes the risk of overspeed errors. Data output allows connection to SPC and measurement networks, with Mitutoyo data cables, USB input tools and U-WAVE wireless transmitters available separately.
Suitable for precision comparative measurement, inspection fixtures, run-out checks and quality control.
