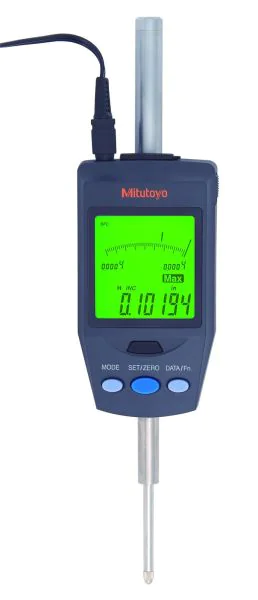

Mitutoyo 543-562E Digital Indicator ID-H, Resolution 0.0005mm, Range 30.4mm
Code
543-562E
Categories: Default Category, Digital Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 30.4 mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.0015 mm |
| Display | Digital |
| Resolution | 0.0005 mm/0.00002" |
| Measuring Force | 2.0N |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Japan |
The Mitutoyo 543-562E is a high accuracy, high functionality Digimatic indicator with 0.5 µm resolution, max/min and runout measurement, a 2-colour backlit display with analogue bar, and GO/NO-GO judgement. It runs from an AC adapter and can be remote controlled.
- Measuring range: 1.2" / 30.4 mm
- Resolution: .00002", .00005", .0001" / 0.0005, 0.001 mm (selectable)
- Maximum permissible error: ±.00006" / 0.0015 mm
- Measuring force: 2.0 N or less
- Standard contact point: 21BZB005
Mitutoyo ABSOLUTE technology keeps the origin when the indicator is switched off, so there is no need to re-zero, and removes the risk of overspeed errors. Data output allows connection to SPC and measurement networks, with Mitutoyo data cables, USB input tools and U-WAVE wireless transmitters available separately.
Suitable for precision comparative measurement, inspection fixtures, run-out checks and quality control.
