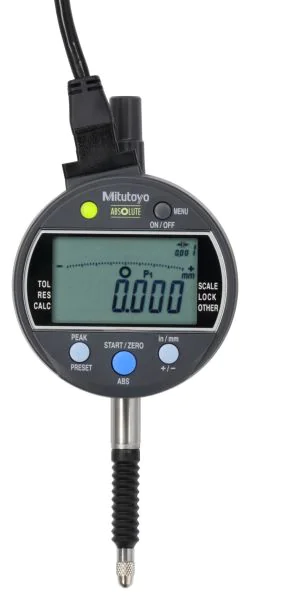

Mitutoyo 543-351B-10 Digital Indicator ID-C Signal Output, Resolution 0.001mm, Range 12.7mm
Code
543-351B-10
Categories: Default Category, Digital Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 12.7 mm |
| Measuring units | Inch-Metric |
| Accuracy | 0.003 mm |
| Display | Digital |
| Resolution | 0.001 mm/0.00005" |
| Stem Diameter | 8mm |
| Measuring Force | 2.5N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Japan |
The Mitutoyo 543-351B-10 is an ABSOLUTE Digimatic indicator with signal output for direct connection to control systems, rated IP54.
- Measuring range: .5" / 12.7 mm
- Resolution: .00005", .0001", .0005" / 0.001, 0.01 mm (selectable)
- Maximum permissible error: ±.0001" / 0.003 mm
- Measuring force: 2.5 N or less
- Stem diameter: 8mm
- Standard contact point: 901312
Mitutoyo ABSOLUTE technology keeps the origin when the indicator is switched off, so there is no need to re-zero, and removes the risk of overspeed errors. Data output allows connection to SPC and measurement networks, with Mitutoyo data cables, USB input tools and U-WAVE wireless transmitters available separately.
Suitable for precision comparative measurement, inspection fixtures, run-out checks and quality control.
