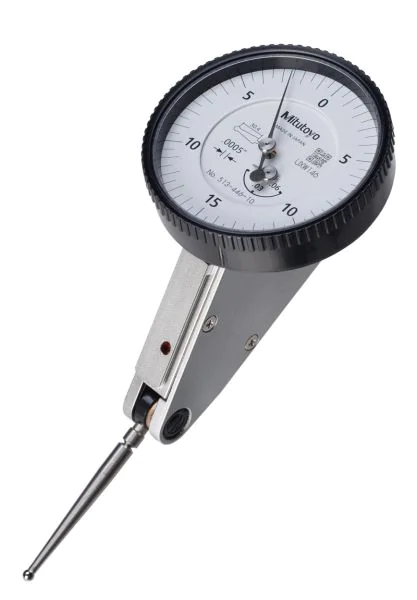

Mitutoyo 513-446-10A Dial Test Indicator Horizontal 20° Face, Full set, 0.06" Range / 0.0005" Graduation
| Display | Analog |
|---|---|
| Measuring units | Metric |
| Accuracy | 3 µm |
| Stylus Length | 18.7 |
| Standard | Manufacture's |
| Manufacturer | Mitutoyo |
| Weight | 1.000000 |
| Country of Manufacture | Japan |
Centered, bi-directional action for automatic reversal of measuring direction. Rotatable scale for easy zero setting. Jewelled bearings and precision gears and pinions for smooth, accurate movement and quick response.
The Mitutoyo 513-446-10A is part of Series 513, Mitutoyo's flagship range of lever-type dial test indicators (DTIs). Designed and built in Japan by Mitutoyo Corporation, the 513-446-10A combines proven engineering with the durability, sensitivity and visibility that machinists, toolmakers and quality inspectors expect from the world's leading metrology brand. Every Series 513 indicator is inspected to JIS B 7533 before despatch.
Key Features
- Configuration: Full set — Plus Set, 0,06", 0,0005", 4/9,52mm Stem, 2 Styli.
- Type: Dial Test Indicator, Horizontal 20° Face.
- Reading: Metric graduations on an analog dial face.
- Measuring range: 0.06".
- Graduation: 0.0005" per division for confident, repeatable readings.
- Movement: jewelled bearings deliver smooth, low-friction action and quick response.
- Bezel & crystal: one-piece bezel with O-ring seal and glare-free flat crystal — multi-layer coatings improve scratch and stain resistance and prevent dust or oil from reaching the dial face.
- Measuring direction: automatic or clutched reversal of measuring direction (depending on model) so the stylus adapts to the workpiece on contact.
- Mounting: dovetail mounts and standard Mitutoyo stem for compatibility with magnetic bases, swivel clamps, height gauges and holder arms; works directly with Mitutoyo magnetic stands.
- Origin: designed and manufactured in Japan by Mitutoyo Corporation.
- Standard: inspected to JIS B 7533 before shipment.
Specifications
| SKU | 513-446-10A |
|---|---|
| Manufacturer | Mitutoyo Corporation (Japan) |
| Series | Series 513 |
| Type | Dial Test Indicator, Horizontal 20° Face |
| Set | Full set |
| Unit system | Metric |
| Measuring range | 0.06" |
| Graduation | 0.0005" |
| Display | Analog dial face |
| Bearings | Jewelled |
| Standard | JIS B 7533 |
| Country of origin | Japan |
What's in the Box
In a box with stem ø8/4 mm, stylus ø1/2/3 mm, swivel clamp / holding bar
Typical Applications
- Aligning vises, fixtures and workpieces on milling machines and machining centres.
- Checking concentricity, runout (TIR) and parallelism on lathes and grinders.
- Surface plate inspection and comparator-style measurement against masters.
- Tramming spindles and indicating bores, slots and machined features in restricted-access locations.
- In-process quality control and final inspection in toolrooms and calibration laboratories.
The Mitutoyo 513-446-10A is backed by Mitutoyo's worldwide service and calibration network, with original spares and accessories available across the Series 513 platform.
