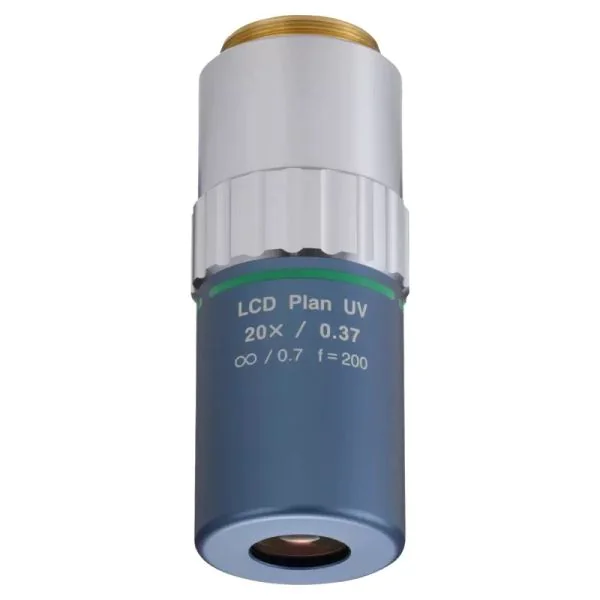

Mitutoyo 378-892-8 LCD Plan UV 20X Objective, NA 0.36, WD 15mm

Mitutoyo LCD Plan UV 20X infinity-corrected objective for brightfield observation – ultraviolet (266 nm) corrected for observing through LCD glass. Mitutoyo 378 series objectives have the world's longest working distances, giving good clearance over awkward workpiece features. Mounting thread to JIS B-7141.

• Magnification: 20X
• Numerical aperture: 0.36
• Working distance: 15 mm
• Focal length: 10 mm
• Resolving power: 0.8 µm
• Depth of focus: 2.1 µm
• Field of view (FN 24 eyepiece): 1.2 mm
• Field of view (1/2" camera): 0.24 x 0.32 mm
• Observation: Brightfield
• Mass: 330 g

Made in Japan by Mitutoyo.
