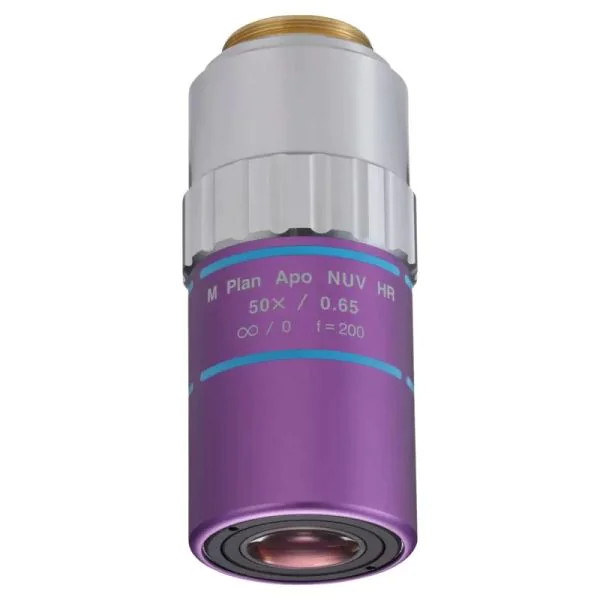

Mitutoyo 378-888-6 M Plan Apo NUV HR 50X Objective, NA 0.65, WD 10mm

Mitutoyo M Plan Apo NUV HR 50X infinity-corrected objective for brightfield observation – near-ultraviolet (355 nm) corrected, high resolution. Mitutoyo 378 series objectives have the world's longest working distances, giving good clearance over awkward workpiece features. Mounting thread to JIS B-7141.

• Magnification: 50X
• Numerical aperture: 0.65
• Working distance: 10 mm
• Focal length: 4 mm
• Resolving power: 0.42 µm
• Depth of focus: 0.65 µm
• Field of view (FN 24 eyepiece): 0.48 mm
• Field of view (1/2" camera): 0.10 x 0.13 mm
• Observation: Brightfield
• Mass: 500 g

Made in Japan by Mitutoyo.
