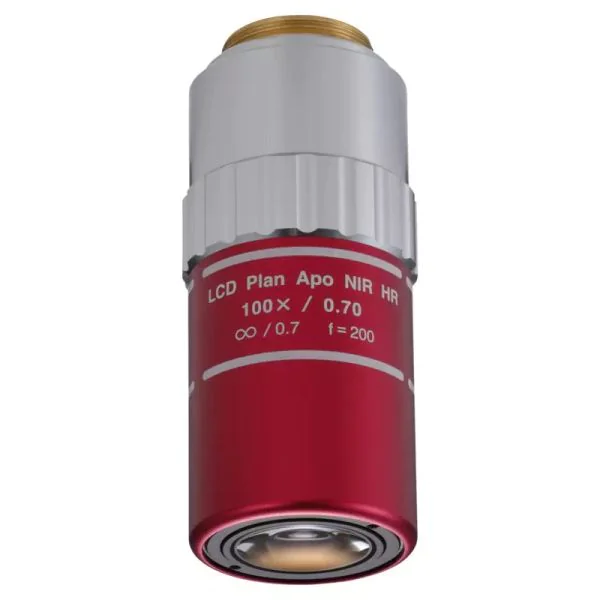

Mitutoyo 378-870-15 LCD Plan Apo NIR HR (t = 0.7mm) 100X Objective, NA 0.70, WD 9.87mm

Mitutoyo LCD Plan Apo NIR HR (t=0.7mm) 100X infinity-corrected objective for brightfield observation – near-infrared corrected, high resolution, for observing through 0.7 mm LCD glass. Mitutoyo 378 series objectives have the world's longest working distances, giving good clearance over awkward workpiece features. Mounting thread to JIS B-7141.

• Magnification: 100X
• Numerical aperture: 0.70
• Working distance: 9.87 mm
• Focal length: 2 mm
• Resolving power: 0.4 µm
• Depth of focus: 0.7 µm
• Field of view (FN 24 eyepiece): 0.24 mm
• Field of view (1/2" camera): 0.05 x 0.06 mm
• Observation: Brightfield
• Mass: 490 g

Made in Japan by Mitutoyo.
