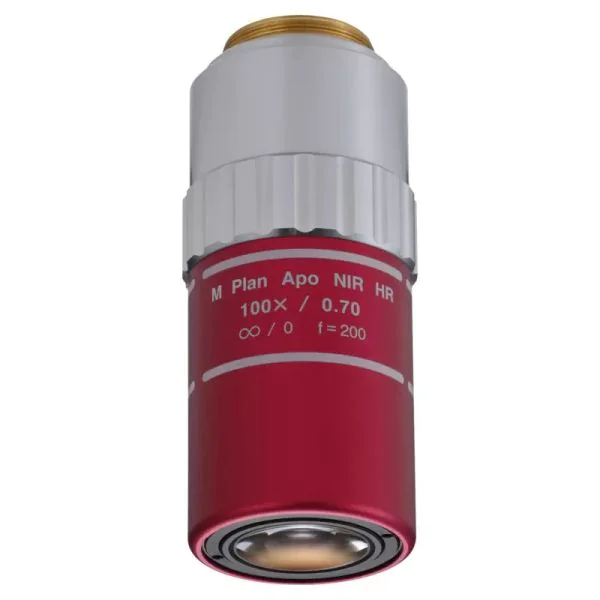

Mitutoyo 378-864-15 M Plan Apo NIR HR 100X Objective, NA 0.70, WD 10mm

Mitutoyo M Plan Apo NIR HR 100X infinity-corrected objective for brightfield observation – near-infrared corrected, high resolution. Mitutoyo 378 series objectives have the world's longest working distances, giving good clearance over awkward workpiece features. Mounting thread to JIS B-7141.

• Magnification: 100X
• Numerical aperture: 0.70
• Working distance: 10 mm
• Focal length: 2 mm
• Resolving power: 0.39 µm
• Depth of focus: 0.56 µm
• Field of view (FN 24 eyepiece): 0.24 mm
• Field of view (1/2" camera): 0.05 x 0.06 mm
• Observation: Brightfield
• Mass: 450 g

Made in Japan by Mitutoyo.
