Categories: Default Category, Bore micrometer sets
| Manufacturer | Mitutoyo |
|---|---|
| Display | Analog |
| Measuring units | Metric |
| Type | 3-point |
| Range | 100 - 200mm |
| Measuring Face | Titanium-coated (TiN) measuring pins |
| Included in Set | Individual ranges: 100-125, 125-150, 150-175, 175-200 mm Models included: 368-774 / 368-775 / 368-776 / 368-777 Setting rings included: ø125 mm (177-298) ø175 mm (177-302) |
| Weight | 5.000000 |
| Country of Manufacture | Japan |

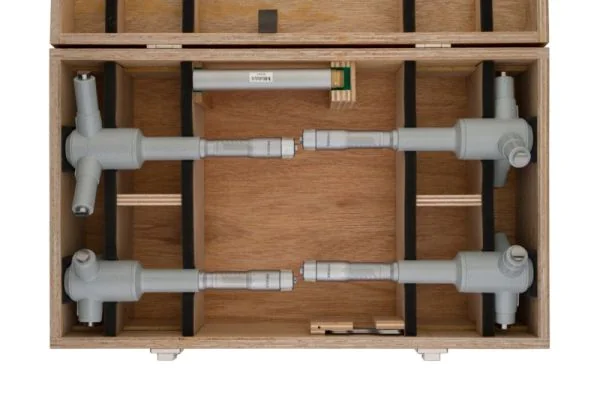

The Mitutoyo 368-994 is a 3-point Holtest internal micrometer set covering 100–200mm (3.937–7.874"). The set contains 4 internal micrometers that measure by automatic three-point self-centring contact for stable, repeatable readings, and is supplied with setting rings and an extension rod in a fitted case. Titanium-coated (TiN) measuring pins give excellent durability and impact resistance. A ratchet stop applies a constant measuring force for consistent results, making the set well suited to internal diameter measurement in machining and inspection.
Features
- Brand: Mitutoyo
- Part number (MPN): 368-994
- Type: Holtest 3-point internal micrometer set
- Measuring range: 100–200mm (3.937–7.874")
- Measurement system: Metric
- Set pieces: 4 internal micrometers
- Measuring method: Automatic three-point self-centring contact
- Measuring faces: Titanium-coated (TiN) measuring pins
- Supplied with: setting rings and an extension rod, fitted case
- Ratchet stop: Yes (constant measuring force)
