Mitutoyo 368-920 Holtest 3-point Internal Micrometer Set 4-8" (8 pieces)

Code

368-920

£5,140.00

In stock

Quantity

Mitutoyo Holtest 3-point internal micrometer set covering 4–8" (101.6–203.2mm), supplied as a complete 8-piece set with setting rings and an extension rod.

Measuring range: 4–8" (101.6–203.2mm)
Set pieces: 8 internal micrometers
Method: Automatic three-point self-centring contact
Measuring faces: Titanium-coated (TiN) measuring pins
Supplied with: setting rings and an extension rod
Brand: Mitutoyo

Request a Quote Ask a Question

Need more information? contact us.

Categories: Default Category, Bore Micrometer Sets

Specification

Manufacturer	Mitutoyo
Display	Analogue
Measuring units	Inch
Type	3-point
Range	4-8"
Graduation	0.0002"
Measuring Face	Titanium-coated (TiN) measuring pins
Included in Set	Individual ranges: 4-5", 5-6", 6-7", 7-8" Models included: 368-274 / 368-275 / 368-276 / 368-277 Setting rings included: ø5" (177-299) ø7" (177-303)
Spindle	Thimble and sleeve satin chrome finish, Up to 12 mm : ø 17 mm Over 12 mm : ø 23 mm Spindle pitch 0,635 mm
Country of Manufacture	Japan

Details

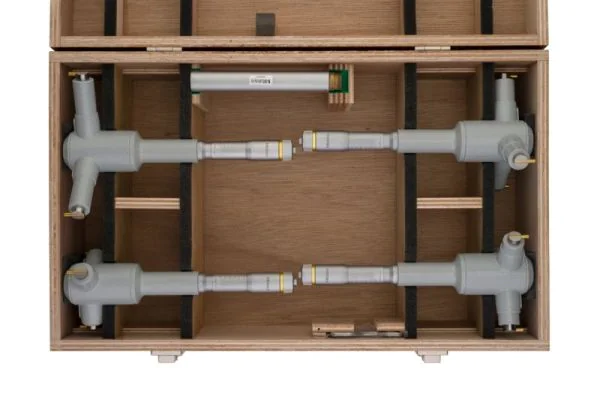

The Mitutoyo 368-920 is a 3-point Holtest internal micrometer set covering 4–8" (101.6–203.2mm). The set contains 8 internal micrometers that measure by automatic three-point self-centring contact for stable, repeatable readings, and is supplied with setting rings and an extension rod in a fitted case. Titanium-coated (TiN) measuring pins give excellent durability and impact resistance. A ratchet stop applies a constant measuring force for consistent results, making the set well suited to internal diameter measurement in machining and inspection.
