Mitutoyo 368-914 Holtest 3-point Internal Micrometer Set 50-100mm (4 pieces)

Code

368-914

Special Price £2,290.00 was £3,160.00

In stock

Quantity

Mitutoyo Holtest 3-point internal micrometer set covering 50–100mm (1.969–3.937"), supplied as a complete 4-piece set with setting rings and an extension rod.

Measuring range: 50–100mm (1.969–3.937")
Set pieces: 4 internal micrometers
Method: Automatic three-point self-centring contact
Measuring faces: Titanium-coated (TiN) measuring pins
Supplied with: setting rings and an extension rod
Brand: Mitutoyo

Request a Quote Ask a Question

Need more information? contact us.

Categories: Default Category, Bore Micrometer Sets

Specification

Manufacturer	Mitutoyo
Display	Analogue
Measuring units	Metric
Type	3-point
Range	50-100mm
Graduation	0.005mm
Measuring Face	Titanium-coated (TiN) measuring pins
Included in Set	Individual ranges: 50-63, 62-75, 75-88, 87-100mm Models included: 368-170 / 368-171 / 368-172 / 368-173 Setting rings included: ø62 mm (177-314) ø87 mm (177-318)
Spindle	Thimble and sleeve satin chrome finish, Up to 12 mm : Ø 17 mm Over 12 mm : Ø 23 mm Spindle pitch 0,5 mm
Country of Manufacture	Japan

Details

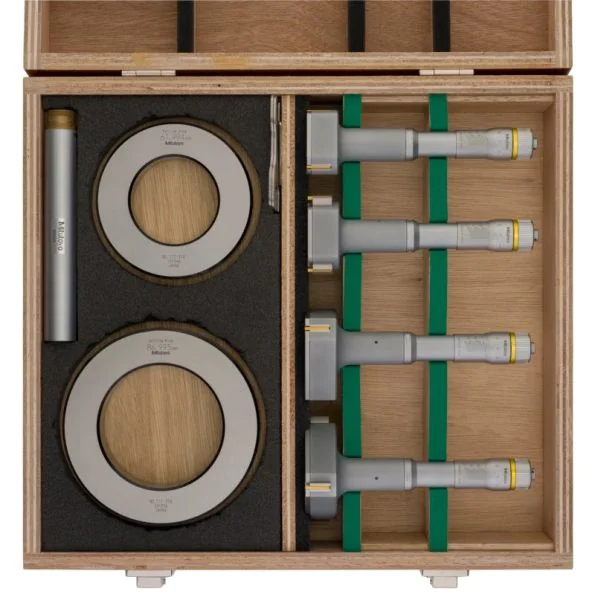

The Mitutoyo 368-914 is a 3-point Holtest internal micrometer set covering 50–100mm (1.969–3.937"). The set contains 4 internal micrometers that measure by automatic three-point self-centring contact for stable, repeatable readings, and is supplied with setting rings and an extension rod in a fitted case. Titanium-coated (TiN) measuring pins give excellent durability and impact resistance. A ratchet stop applies a constant measuring force for consistent results, making the set well suited to internal diameter measurement in machining and inspection.
