Mitutoyo 368-912 Holtest 3-point Internal Micrometer Set 12-20mm (2 pieces)

Code

368-912

Special Price £600.00 was £828.00

In stock

Quantity

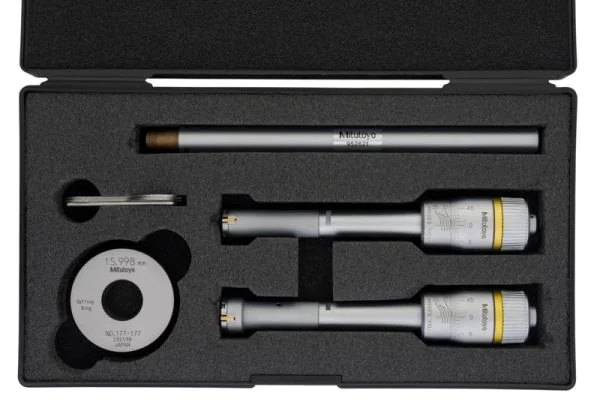

Mitutoyo Holtest 3-point internal micrometer set covering 12–20mm (0.472–0.787"), supplied as a complete 2-piece set with 1 setting ring and 1 extension rod.

Measuring range: 12–20mm (0.472–0.787")
Set pieces: 2 internal micrometers
Method: Automatic three-point self-centring contact
Measuring faces: Titanium-coated (TiN) measuring pins
Supplied with: 1 setting ring and 1 extension rod
Brand: Mitutoyo

Request a Quote Ask a Question

Need more information? contact us.

Categories: Default Category, Bore Micrometer Sets

Specification

Manufacturer	Mitutoyo
Display	Analogue
Measuring units	Metric
Type	3-point
Range	12-20mm
Graduation	0.005mm
Measuring Face	Titanium-coated (TiN) measuring pins
Included in Set	Individual ranges: 12-16, 16-20mm Models included: 368‑164 / 368‑165 Setting rings included: ø16 mm (177‑177)
Spindle	Thimble and sleeve satin chrome finish, Up to 12 mm : Ø 17 mm Over 12 mm : Ø 23 mm Spindle pitch 0,5 mm
Country of Manufacture	Japan

Details

The Mitutoyo 368-912 is a 3-point Holtest internal micrometer set covering 12–20mm (0.472–0.787"). The set contains 2 internal micrometers that measure by automatic three-point self-centring contact for stable, repeatable readings, and is supplied with 1 setting ring and 1 extension rod in a fitted case. Titanium-coated (TiN) measuring pins give excellent durability and impact resistance. A ratchet stop applies a constant measuring force for consistent results, making the set well suited to internal diameter measurement in machining and inspection.
