Categories: Default Category, Bore micrometer sets
| Manufacturer | Mitutoyo |
|---|---|
| Display | Analog |
| Measuring units | Metric |
| Type | 2-point |
| Range | 3 - 6mm |
| Measuring Face | Carbide measuring faces |
| Included in Set | Individual ranges: 3-4, 4-5, 5-6mm Models included: 368‑003 / 368‑004 / 368‑005 Setting rings included: ø4 mm (177‑204) ø5 mm (177‑205) |
| Weight | 1.000000 |
| Country of Manufacture | Japan |

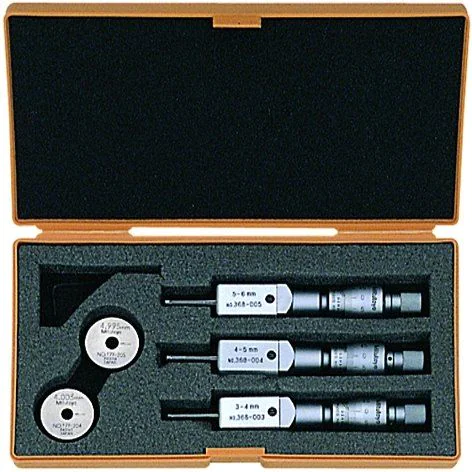

The Mitutoyo 368-907 is a 2-point Holtest internal micrometer set covering 3–6mm (0.118–0.236"). The set contains 3 internal micrometers that measure by two-point contact for stable, repeatable readings, and is supplied with setting rings and an extension rod in a fitted case. Carbide measuring faces give excellent wear resistance on small bores. A ratchet stop applies a constant measuring force for consistent results, making the set well suited to internal diameter measurement in machining and inspection.
Features
- Brand: Mitutoyo
- Part number (MPN): 368-907
- Type: Holtest 2-point internal micrometer set
- Measuring range: 3–6mm (0.118–0.236")
- Measurement system: Metric
- Set pieces: 3 internal micrometers
- Measuring method: Two-point contact
- Measuring faces: Carbide measuring faces
- Supplied with: setting rings and an extension rod, fitted case
- Ratchet stop: Yes (constant measuring force)
