Mitutoyo 368-906 Holtest 2-point Internal Micrometer Set 2-3mm (2 pieces)

Code

368-906

£2,040.00

In stock

Quantity

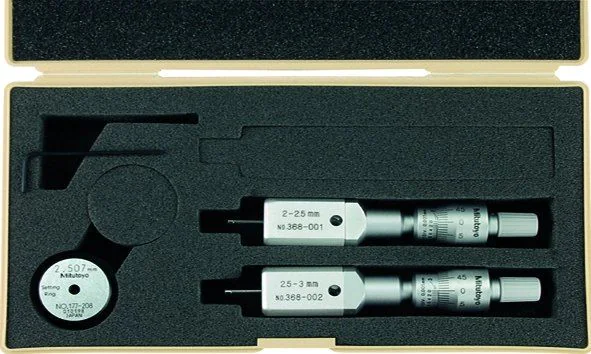

Mitutoyo Holtest 2-point internal micrometer set covering 2–3mm (0.079–0.118"), supplied as a complete 2-piece set with setting rings and an extension rod.

Measuring range: 2–3mm (0.079–0.118")
Set pieces: 2 internal micrometers
Method: Two-point contact
Measuring faces: Carbide measuring faces
Supplied with: setting rings and an extension rod
Brand: Mitutoyo

Request a Quote Ask a Question

Need more information? contact us.

Categories: Default Category, Bore Micrometer Sets

Specification

Manufacturer	Mitutoyo
Display	Analogue
Measuring units	Metric
Type	2-point
Range	2-3mm
Graduation	0.001mm
Measuring Face	Carbide measuring faces
Included in Set	Individual ranges: 2-2.5, 2.5-3mm Models included: 368‑001 / 368‑002 Setting rings included: ø2.5 mm (177-208)
Spindle	Thimble and sleeve satin chrome finish, Up to 12 mm : Ø 17 mm Over 12 mm : Ø 23 mm Spindle pitch 0,5 mm
Country of Manufacture	Japan

Details

The Mitutoyo 368-906 is a 2-point Holtest internal micrometer set covering 2–3mm (0.079–0.118"). The set contains 2 internal micrometers that measure by two-point contact for stable, repeatable readings, and is supplied with setting rings and an extension rod in a fitted case. Carbide measuring faces give excellent wear resistance on small bores. A ratchet stop applies a constant measuring force for consistent results, making the set well suited to internal diameter measurement in machining and inspection.
