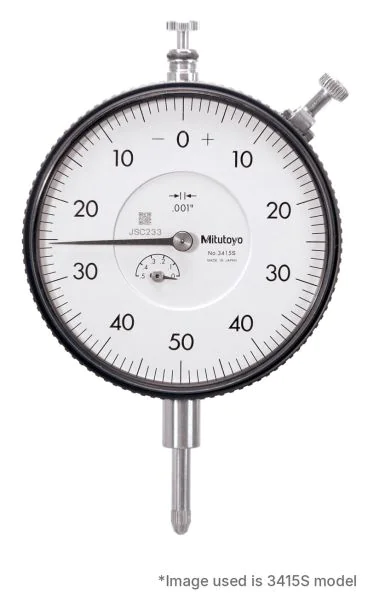

Mitutoyo 3415A Large Dial Indicator, Graduation .001", Range .5"
Code
3415A
Categories: Default Category, Dial Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 0-0.5" |
| Dial Revolution | 0.1" |
| Dial Reading | 0-50-0 |
| Measuring units | Inch |
| Dial Face Diameter | 78mm |
| Accuracy | 0.001" |
| Stem Diameter | 3/8" |
| Measuring Force | 1.8N |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Japan |
The Mitutoyo 3415A is a large dial indicator with an oversized dial face for clear reading at a distance. Part of the Mitutoyo Series 3 range, it is built with a quench-hardened stainless steel stem and spindle for heavy-duty use, and a sealed bezel and crystal to keep out water and oil.
- Measuring range: .5"
- Range per revolution: .1"
- Graduation: .001"
- Dial reading: 0-50-0
- Maximum permissible error (overall): ±.001" / ±.001" / ±.001"
- Hysteresis: .0002"
- Repeatability: ±.0002"
- Measuring force: 1.8 N or less
- Bezel diameter: 78mm
- Stem diameter: 3/8"
- Contact point: carbide, No. 4-48 UNF thread
Accuracy is inspected with the indicator vertical, contact point downward. Optional bezel clamps, limit hands, lifting levers and alternative contact points are available.
Suitable for comparative measurement, run-out and flatness checks, height comparison on a stand and use in gauging fixtures.
