Categories: Depth Measuring Gauges, Depth Micrometers
| Display | Digital |
|---|---|
| Measuring units | Inch/Metric |
| Type | Standard |
| Accuracy | (4+L/50) µm L = max. measuring length (mm) |
| Resolution | 0.0001"/0.001 mm |
| Material | Hardened tool steel |
| Manufacturer | Mitutoyo |
| Standard | Manufacture's |
| Weight | 2.000000 |
This Digital Depth Micrometer offers you the following benefits:
- ø4mm measuring rod
- Ratchet stop provides a constant measuring force
- Measuring rod lock for secure transfer measurement
- Hardened tool steel base, ground and micro-lapped for flatness
- ABSOLUTE (ABS) digital encoder retains origin after power-off
- Large LCD display for fast, error-free readings
- Supplied in a fitted storage case

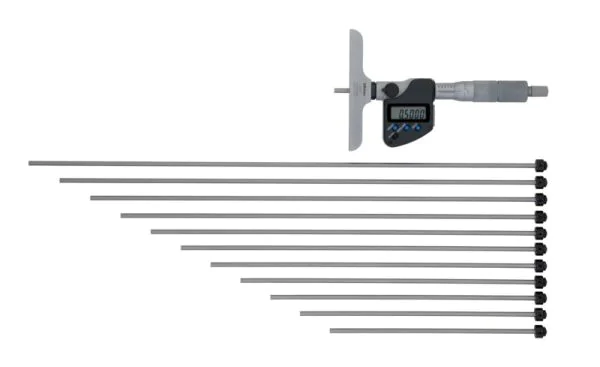

Mitutoyo Digital Depth Micrometer (329-351-30) is a high-accuracy digital ABSOLUTE depth micrometer designed for fast, repeatable depth measurement with digital LCD readout.
- Measuring range: 0-12" / 0-305mm
- Flatness (base): 2µm
- Flatness (rod): 0.3µm
- Parallelism (base/rod): (4+L/50) µm <br>L = max. measuring length (mm)
- Base size: 4 x 0.63"
- Spindle pitch: 0.5mm
- Measuring force: 5-10 N
Features include ABSOLUTE encoder, ratchet stop for constant measuring force, high-contrast LCD display, and hardened tool-steel base.
Suitable for production measurement, quality control and shop-floor inspection.
