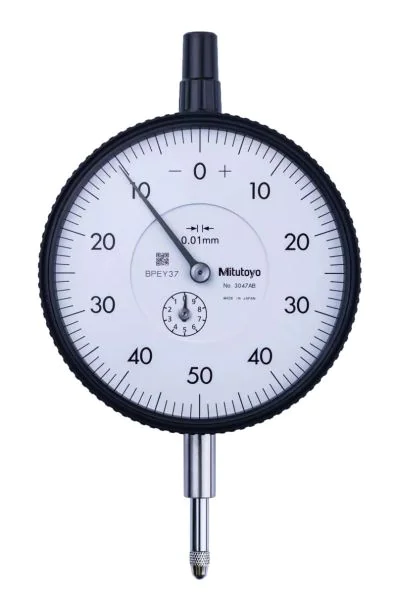

Mitutoyo 3047A Large Dial Indicator, Graduation 0.01mm, Range 10mm
Code
3047A
Categories: Default Category, Dial Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 0-10mm |
| Dial Revolution | 1 mm |
| Dial Reading | 0-50-0 |
| Measuring units | Metric |
| Dial Face Diameter | 78mm |
| Accuracy | 15 µm |
| Stem Diameter | 8mm |
| Measuring Force | 1.4N |
| Contact Point | M2.5 thread |
| Country of Manufacture | Japan |
The Mitutoyo 3047A is a large dial indicator with an oversized dial face for clear reading at a distance. Part of the Mitutoyo Series 3 range, it is built with a quench-hardened stainless steel stem and spindle for heavy-duty use, and a sealed bezel and crystal to keep out water and oil.
- Measuring range: 10 mm
- Range per revolution: 1 mm
- Graduation: 0.01mm
- Dial reading: 0-50-0
- Maximum permissible error (overall): 15 μm
- Hysteresis: 3 μm
- Repeatability: 3 μm
- Measuring force: 1.4 N or less
- Bezel diameter: 78mm
- Stem diameter: 8mm
- Contact point: carbide, M2.5 x 0.45 thread
Accuracy is inspected with the indicator vertical, contact point downward. Optional bezel clamps, limit hands, lifting levers and alternative contact points are available.
Suitable for comparative measurement, run-out and flatness checks, height comparison on a stand and use in gauging fixtures.
