Mitutoyo 303-717-13 PJ-H30A2010B Profile Projector, ø306mm Screen, XY Stage Travel 200 x 100mm
Code
303-717-13
| Manufacturer | Mitutoyo |
|---|---|
| Resolution | 0.001mm |
| XY Stage Size | 350 x 280mm |
| XY Stage Effective Area | 250 x 150mm |
| XY Stage Travel Range | 200 x 100mm |
| Max Workpiece Height | 105mm |
| Swivel Function | ±3° |
| Focusing Method | Manual |
| Max Stage Loading | 10kg |
| Image Orientation | Erect |
| Illumination | Contour and surface |
| Projector Layout | Vertical, bench-top |
| Standard Objective | 10X projection lens |
| Total Magnification | 10X (5X-100X optional) |
| Country of Manufacture | Japan |

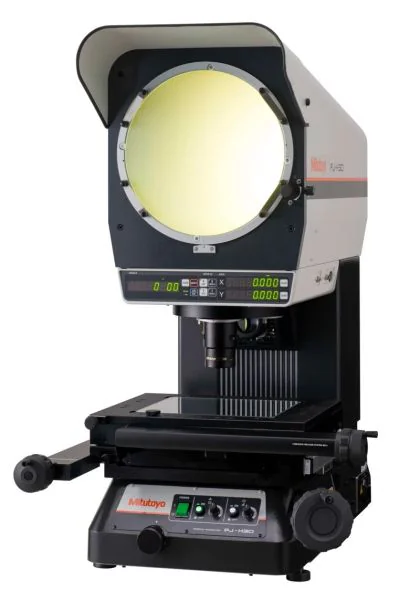

The Mitutoyo PJ-H30A2010B (303-717-13) profile projector shows a magnified erect image of the workpiece on a 306 mm (12") protractor screen for fast dimension and angle checks. The PJ-H30 has a measuring stage with rapid one-handed adjustment on both axes, switching smoothly between quick positioning and fine adjustment. Its contour illumination gives a bright projected image, and the surface illumination can be angled to show poorly reflecting surfaces clearly. Includes RS-232C output.
- Measuring accuracy: ±(3+0.02L) µm, L = measured length (mm)
- Protractor screen: effective diameter 306 mm (12"), ±360° rotation, digital angle reading 1' or 0.01° (switchable), ABS/INC, zero set
- Magnification accuracy: contour ±0.1% or better, surface ±0.15% or better
- Contour illumination: halogen (24 V 150 W), telecentric zoom
- Surface illumination: halogen (24 V 150 W), vertical/oblique with adjustable condenser lens
- Power supply: 240 V AC ±10%, 50/60 Hz
Made in Japan by Mitutoyo.
