Mitutoyo 302-802-10 PJ-PLUS PJ-P2010A Profile Projector, ø315mm Screen, XY Stage Travel 200 x 100mm
Code
302-802-10
| Manufacturer | Mitutoyo |
|---|---|
| Resolution | 0.001mm |
| XY Stage Size | 350 x 280mm |
| XY Stage Effective Area | 240 x 140mm |
| XY Stage Travel Range | 200 x 100mm |
| Max Workpiece Height | 90.5mm |
| Swivel Function | None |
| Focusing Method | Manual |
| Max Stage Loading | 8kg |
| Image Orientation | Inverted |
| Illumination | Contour and surface |
| Projector Layout | Vertical, bench-top |
| Standard Objective | 10X projection lens |
| Total Magnification | 10X (20X-100X optional) |
| Country of Manufacture | Japan |

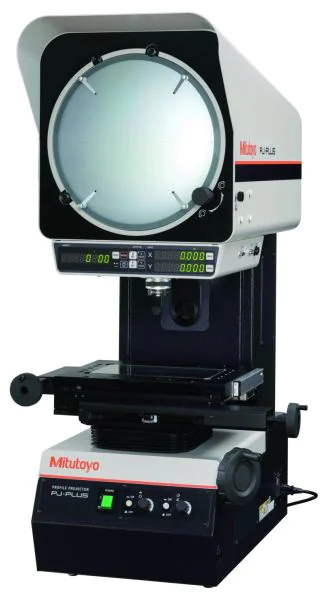

The Mitutoyo PJ-P2010A (302-802-10) profile projector shows a magnified inverted image of the workpiece on a 315 mm (12.4") protractor screen for fast dimension and angle checks. The PJ-PLUS is designed to be operated intuitively, even by inexperienced users, and is built for harsher environments such as production lines. White LED illumination with stepless adjustment and a fan-less cooling system give long life and low energy use.
- Protractor screen: effective diameter 315 mm (12.4"), ±360° rotation, digital angle reading 1' or 0.01° (switchable), ABS/INC, zero set
- Magnification accuracy: contour ±0.1% or better, surface ±0.15% or better
- Contour illumination: white LED, telecentric
- Surface illumination: white LED with adjustable condenser lens
- Power supply: 240 V AC ±10%, 50/60 Hz
- Mass: 118 kg
Made in Japan by Mitutoyo.
