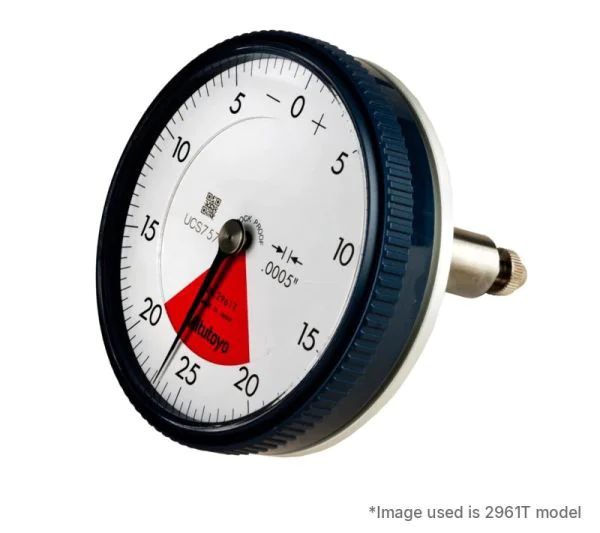

Mitutoyo 2961A Back Plunger Dial Indicator, Graduation .0005", Range .04"
Code
2961A
Categories: Default Category, Dial Indicators
| Manufacturer | Mitutoyo |
|---|---|
| Range | 0-0.040" |
| Dial Revolution | 0.05" |
| Dial Reading | 20-0-20 |
| Measuring units | Inch |
| Dial Face Diameter | 57mm |
| Accuracy | 0.0005" |
| Stem Diameter | 3/8" |
| Measuring Force | 1.4N |
| Contact Point | No. 4-48 UNF thread |
| Country of Manufacture | Japan |
The Mitutoyo 2961A is a back plunger dial indicator, with the spindle at the back of the case so the dial faces you when measuring. Part of the Mitutoyo Series 2 range, it is built with a quench-hardened stainless steel stem and spindle for heavy-duty use, and a sealed bezel and crystal to keep out water and oil.
- Measuring range: .04"
- Range per revolution: .05"
- Graduation: .0005"
- Dial reading: 20-0-20
- Maximum permissible error (overall): ±.0005" / — / —
- Hysteresis: .00016"
- Repeatability: ±.0001"
- Measuring force: 1.4 N or less
- Bezel diameter: 57mm
- Stem diameter: 3/8"
- Contact point: No. 4-48 UNF thread
Accuracy is inspected with the indicator vertical, contact point downward. Optional bezel clamps, limit hands, lifting levers and alternative contact points are available.
Suitable for comparative measurement, run-out and flatness checks, height comparison on a stand and use in gauging fixtures.
